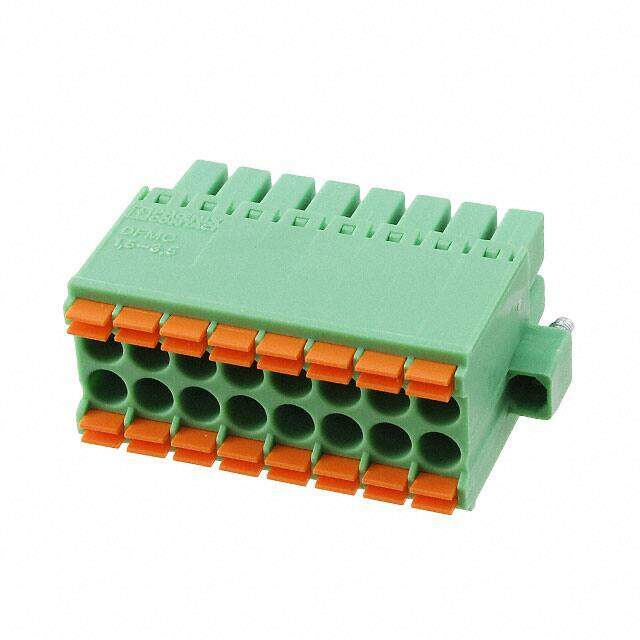

1790357
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
Pluggable Terminal Blocks 8 Pos 3.5mm Dbl Row Plug 24-16AWG Spring
PDF
/
Buying Options
Total Price: USD $10.52
Unit Price: USD $10.5248
≥1 USD $10.5248
≥10 USD $10.23704
≥100 USD $9.56736
≥500 USD $8.802024
≥1000 USD $8.6372
Inventory: 714
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 13 Weeks
Physical
Mount Free Hanging
Mounting Type Free Hanging (In-Line)
Housing Material Polyamide (PA), Nylon
Technical
Packaging Bulk
Published 2013
Series COMBICON DFMC
Feature Mating Flange
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screwless
ECCN Code EAR99
Connector Type Screw
Type Plug, Female Sockets
Number of Positions 16
Color Green
Gender Female
Voltage - Rated 160V
Pitch 0.138 3.50mm
Orientation Straight
Depth 22.65mm
Insulation Height 0.522 13.25mm
Current Rating 8A
Termination Style Screwless - Push-In Spring
Voltage 150V
Max Supply Voltage 160V
Max Current Rating 8A
Number of Levels 2
Current 8A
Wire Gauge (Max) 24 AWG
Wire Gauge (Min) 16 AWG
Contact Mating Finish Tin
Wire Gauge or Range - AWG 16-24 AWG
Voltage - IEC 250V
Plug Wire Entry 180°
Wire Gauge or Range - mm2 0.2-1.5mm2
Wire Strip Length 10mm
Number of Positions Per Level 8
Dimensions
Length 35mm
Compliance
Material Flammability Rating UL94 V-0
Radiation Hardening No
RoHS Status RoHS Compliant
Lead Free Lead Free
