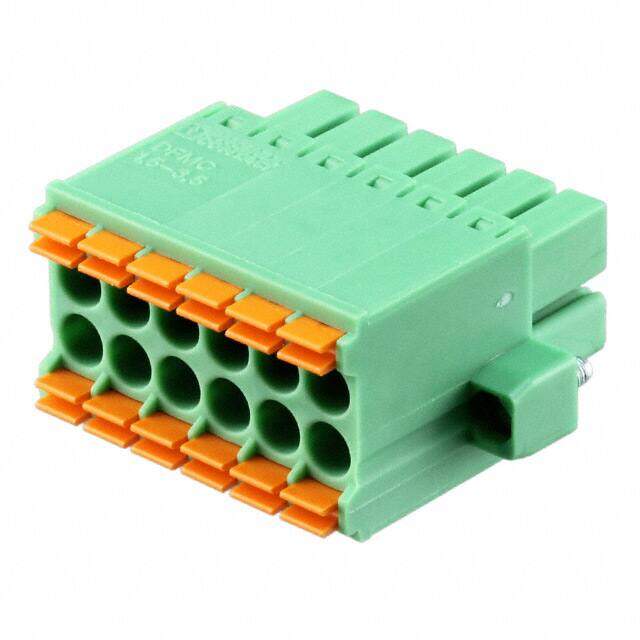

1790331
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
Pluggable Terminal Block, 6, 160 V, 8 A, 3.5 mm, 24 AWG, 16 AWG
PDF
/
Buying Options
Total Price: USD $7.93
Unit Price: USD $7.9288
≥1 USD $7.9288
≥10 USD $7.71144
≥100 USD $7.2072
≥500 USD $6.630624
≥1000 USD $6.506509
Inventory: 2797
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Technical
Number of Positions Per Level 6
Wire Strip Length 10mm
Wire Gauge or Range - mm2 0.2-1.5mm2
Plug Wire Entry 180°
Voltage - IEC 250V
Wire Gauge or Range - AWG 16-24 AWG
Contact Mating Finish Tin
Wire Gauge (Min) 24 AWG
Wire Gauge (Max) 16 AWG
Current 8A
Number of Levels 2
Voltage 150V
Termination Style Screwless - Push-In Spring
Current Rating 8A
Reach Compliance Code unknown
Insulation Height 0.522 13.25mm
Pitch 0.138 3.50mm
Voltage - Rated 160V
Gender Female
Color Green
Number of Positions 12
Type Plug, Female Sockets
Connector Type Screw
ECCN Code EAR99
Termination Screwless
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Mating Flange
Series COMBICON DFMC
Published 2011
Packaging Bulk
Physical
Housing Material Polyamide (PA), Nylon
Mounting Type Free Hanging (In-Line)
Mount Free Hanging
Supply Chain
Factory Lead Time 13 Weeks
