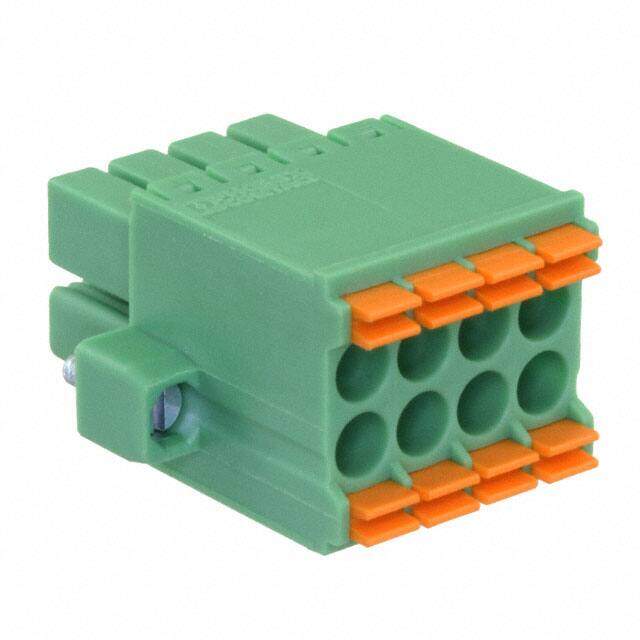

1790315
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
Pluggable Terminal Blocks 4 Pos 3.5mm Dbl Row Plug 24-16AWG Spring
PDF
/
Buying Options
Total Price: USD $5.4
Unit Price: USD $5.4032
≥1 USD $5.4032
≥10 USD $5.25448
≥100 USD $4.9104
≥500 USD $4.517568
≥1000 USD $4.43337
Inventory: 283
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 13 Weeks
Physical
Contact Material Brass
Contact Plating Tin
Mount Free Hanging
Mounting Type Free Hanging (In-Line)
Housing Material Polyamide (PA), Nylon
Technical
Packaging Bulk
Published 2012
Series COMBICON DFMC
Feature Mating Flange
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screwless
Connector Type Screw
Type Plug, Female Sockets
Number of Positions 8
Color Green
Number of Rows 2
Gender Male
Voltage - Rated 160V
Pitch 0.138 3.50mm
Insulation Height 0.522 13.25mm
Current Rating 8A
Termination Style Screwless - Push-In Spring
Number of Contacts 4
Housing Color Natural
Voltage 150V
ELV Compliant
Number of Levels 2
Current 8A
Wire Gauge (Max) 24 AWG
Wire Gauge (Min) 16 AWG
Contact Mating Finish Tin
Voltage - UL 150V
Wire Gauge or Range - AWG 16-24 AWG
Current - UL 8A
Voltage - IEC 250V
Positions Per Level 4
Plug Wire Entry 180°
Wire Gauge or Range - mm2 0.2-1.5mm2
Wire Strip Length 10mm
Current - IEC 8A
Number of Positions Per Level 4
Dimensions
Height 7.6mm
Length 52.2mm
Width 5.6mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
