1790292
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

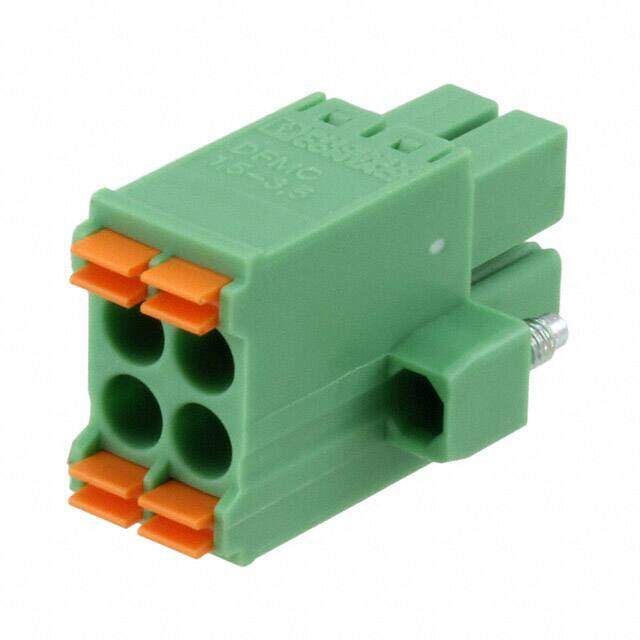

Conn Terminal Block F 4 POS 3.5mm ST Cable Mount 8A
PDF
/
Buying Options
Total Price: USD $2.92
Unit Price: USD $2.9216
≥1 USD $2.9216
≥10 USD $2.83888
≥100 USD $2.6532
≥500 USD $2.440944
≥1000 USD $2.395254
Inventory: 808
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 13 Weeks
Physical
Mount Free Hanging
Mounting Type Free Hanging (In-Line)
Housing Material Polyamide (PA), Nylon
Technical
Packaging Bulk
Published 2011
Series COMBICON DFMC
Feature Mating Flange
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screwless
ECCN Code EAR99
Connector Type Screw
Type Plug, Female Sockets
Number of Positions 4
Color Green
Gender Male
Voltage - Rated 160V
Pitch 0.138 3.50mm
Insulation Height 0.522 13.25mm
Current Rating 8A
Termination Style Screwless - Push-In Spring
Approval Agency CB, VDE, cULus
Voltage 150V
Current 8A
Wire Gauge (Max) 16 AWG
Wire Gauge (Min) 24 AWG
Number of Poles 2
Contact Mating Finish Tin
Wire Gauge or Range - AWG 16-24 AWG
Voltage - IEC 250V
Plug Wire Entry 180°
Wire Gauge or Range - mm2 0.2-1.5mm2
Wire Strip Length 10mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
