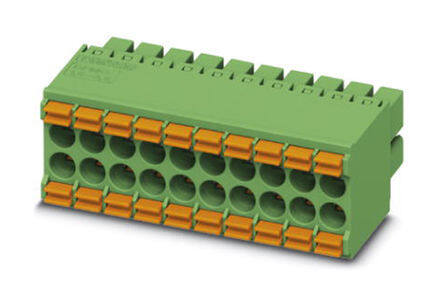

1790289
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
Terminal Block; Plug; Female Sockets; 40 position; 0.138" (3.50mm) pitch; 8A; 150V
PDF
/
Buying Options
Total Price: USD $52.54
Unit Price: USD $52.540945
≥1 USD $52.540945
≥200 USD $20.964387
≥500 USD $20.264612
≥1000 USD $19.918006
Inventory: 2281
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 13 Weeks
Physical
Mount Free Hanging
Mounting Type Free Hanging (In-Line)
Housing Material Polyamide (PA), Nylon
Technical
Packaging Bulk
Published 2011
Series COMBICON DFMC
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screwless
ECCN Code EAR99
Connector Type Screw
Type Plug, Female Sockets
Number of Positions 40
Color Green
Voltage - Rated 160V
Pitch 0.138 3.50mm
Insulation Height 0.522 13.25mm
Current Rating 8A
Termination Style Screwless - Push-In Spring
Voltage 150V
Number of Levels 2
Current 8A
Wire Gauge (Max) 16 AWG
Wire Gauge (Min) 24 AWG
Contact Mating Finish Tin
Wire Gauge or Range - AWG 16-24 AWG
Voltage - IEC 250V
Positions Per Level 20
Plug Wire Entry 180°
Wire Gauge or Range - mm2 0.2-1.5mm2
Wire Strip Length 10mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
