1790195
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

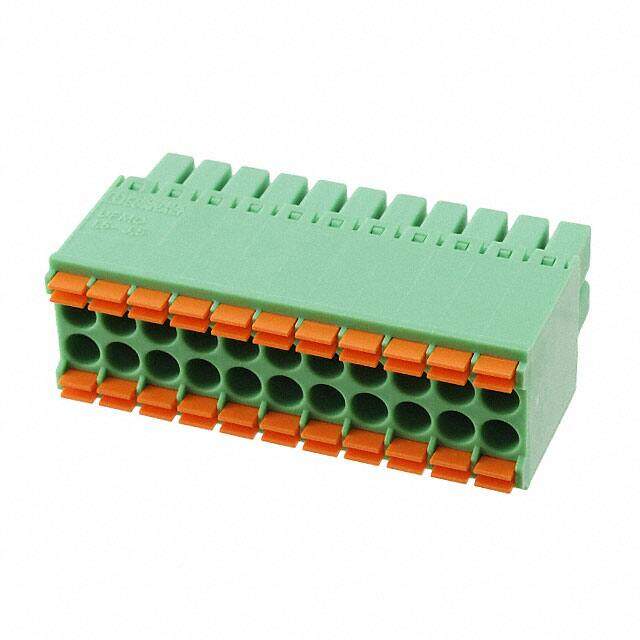

Pluggable Terminal Blocks 11 Pos 3.5mm Dbl Row Plug 24-16AWG Spring
PDF
/
Buying Options
Total Price: USD $41.52
Unit Price: USD $41.524401
≥1 USD $41.524401
≥200 USD $16.568798
≥500 USD $16.014754
≥1000 USD $15.741671
Inventory: 1143
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 13 Weeks
Physical
Mount Free Hanging
Mounting Type Free Hanging (In-Line)
Housing Material Polyamide (PA), Nylon
Technical
Packaging Bulk
Published 2012
Series COMBICON DFMC
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screwless
ECCN Code EAR99
Connector Type Screw
Type Plug, Female Sockets
Number of Positions 22
Color Green
Gender Female
Voltage - Rated 160V
HTS Code 8536.69.40.40
Pitch 0.138 3.50mm
Insulation Height 0.522 13.25mm
Reach Compliance Code unknown
Current Rating 8A
Termination Style Screwless - Push-In Spring
Voltage 150V
Number of Levels 2
Current 8A
Wire Gauge (Max) 16 AWG
Wire Gauge (Min) 24 AWG
Contact Mating Finish Tin
Wire Gauge or Range - AWG 16-24 AWG
Voltage - IEC 250V
Plug Wire Entry 180°
Wire Gauge or Range - mm2 0.2-1.5mm2
Wire Strip Length 10mm
Number of Positions Per Level 11
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
