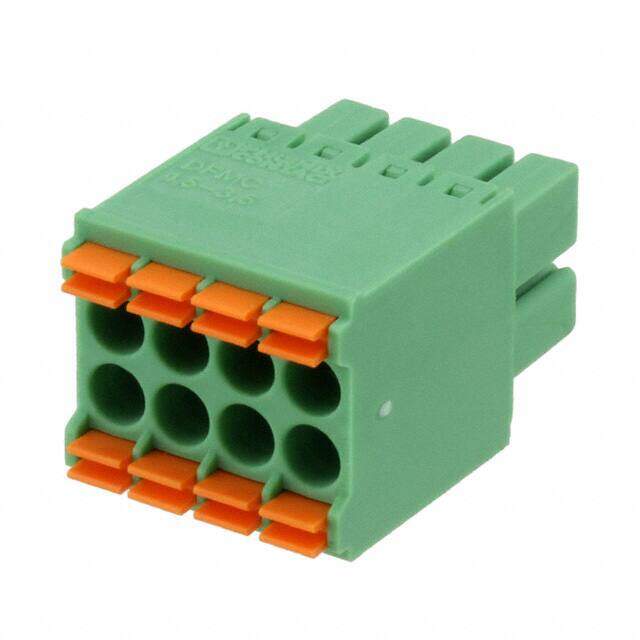

1790124  image
Favorite
1790124  image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description Terminal block; PCB; Plug; Female Sockets; 8 position; 8A; 250V; Push-in
PDF
/
Buying Options
Total Price: USD $4.24
Unit Price: USD $4.2416
≥1 USD $4.2416
Inventory: 1096
Minimum: 1
-
+

Technical Details

Compliance

Lead Free Lead Free
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0

Technical

Number of Positions Per Level 4
Wire Strip Length 10mm
Wire Gauge or Range - mm2 0.2-1.5mm2
Plug Wire Entry 180°
Voltage - IEC 250V
Wire Gauge or Range - AWG 16-24 AWG
Contact Mating Finish Tin
Wire Gauge (Min) 16 AWG
Wire Gauge (Max) 24 AWG
Current 8A
Number of Levels 2
Voltage 150V
Termination Style Screwless - Push-In Spring
Current Rating 8A
Insulation Height 0.522 13.25mm
Pitch 0.138 3.50mm
Voltage - Rated 160V
Gender Female
Color Green
Number of Positions 8
Type Plug, Female Sockets
Connector Type Screw
ECCN Code EAR99
Termination Screwless
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series COMBICON DFMC
Published 2011
Packaging Bulk

Physical

Housing Material Polyamide (PA), Nylon
Mounting Type Free Hanging (In-Line)
Mount Free Hanging

Supply Chain

Factory Lead Time 13 Weeks
