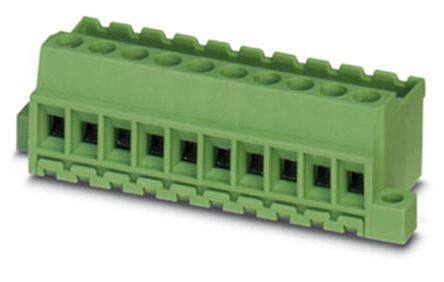

1788693 image
Favorite
1788693 image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description Pluggable Terminal Blocks 18 Pos 5.08mm pitch Box Header
PDF
/
Inventory: 9574
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Supply Chain

Factory Lead Time 5 Weeks

Physical

Contact Plating Tin
Mounting Type Board Mount
Housing Material Polyamide (PA), Nylon
Weight 206.999996g

Technical

Packaging Bulk
Published 2010
Series COMBICON MVSTBU
Feature Mounting Flange
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Connector Type Plug
Type Receptacle, Male Pins
Number of Positions 18
Max Operating Temperature 85°C
Min Operating Temperature -25°C
Color Green
Number of Rows 1
Voltage - Rated 320V
Additional Feature PA, 94V-2
HTS Code 8536.69.40.40
Pitch 0.200 5.08mm
Depth 2.8mm
Insulation Height 0.681 17.30mm
Current Rating 12A
Termination Style Screw
Voltage 300V
Number of Levels 1
Current 10A
Wire Gauge (Max) 12 AWG
Wire Gauge (Min) 24 AWG
Number of Decks 1
Wire Gauge or Range - AWG 12-30 AWG
Voltage - IEC 630V
Torque - Screw 0.5-0.6 Nm (4.4-5.3 Lb-In)
Number of Ways 18
Safety Approval UL
Wire Gauge or Range - mm2 0.2-2.5mm2
Wire Strip Length 7mm
Current - IEC 12A
Screw Size M3
Wire Cross Section 2.5 mm2

Dimensions

Height 20.4mm
Length 2.95mm
Width 102.76mm

Compliance

Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
