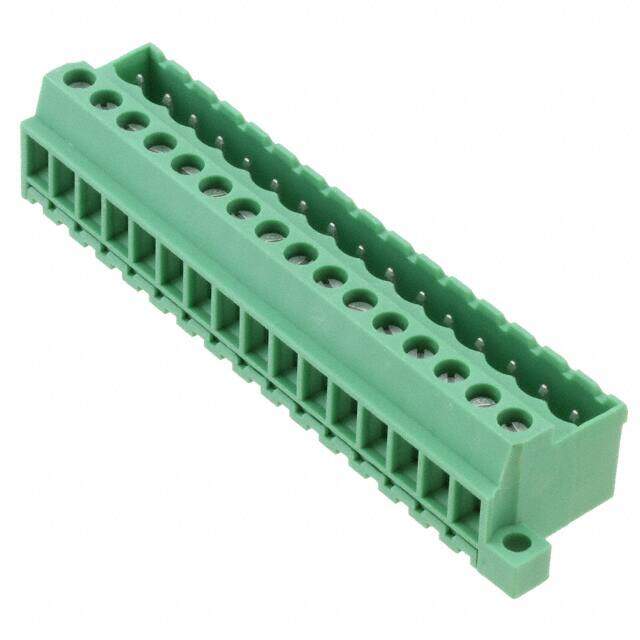

1788677 image
Favorite
1788677 image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description Pluggable Terminal Blocks 16 Pos 5.08mm pitch Box Header
PDF
/
Buying Options
Total Price: USD $19.85
Unit Price: USD $19.8528
≥1 USD $19.8528
Inventory: 71
Minimum: 1
-
+

Technical Details

Compliance

Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0

Dimensions

Width 17.3mm
Length 92.6mm
Height 20.4mm

Technical

Wire Cross Section 2.5 mm2
Screw Size M3
Number of Positions Per Level 16
Current - IEC 12A
Wire Strip Length 7mm
Wire Gauge or Range - mm2 0.2-2.5mm2
Safety Approval CB; CSA; CUL; EAC; UL; VDE
Number of Ways 16
Torque - Screw 0.5-0.6 Nm (4.4-5.3 Lb-In)
Voltage - IEC 630V
Wire Gauge or Range - AWG 12-30 AWG
Number of Decks 1
Wire Gauge (Min) 24 AWG
Wire Gauge (Max) 12 AWG
Current 10A
Number of Levels 1
Voltage 300V
Approval Agency CB, CSA, UL, VDE
Termination Style Screw
Current Rating 12A
Reach Compliance Code not_compliant
Insulation Height 0.681 17.30mm
Depth 20.4mm
Orientation Straight
Pitch 0.200 5.08mm
HTS Code 8536.69.40.40
Additional Feature STANDARD: UL 94V-0, PA
Voltage - Rated 320V
Gender Female
Number of Rows 1
Color Green
Type Receptacle, Male Pins
Connector Type Plug
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Mounting Flange
Series COMBICON MVSTBU
Published 2012
Packaging Bulk

Physical

Weight 206.999996g
Housing Material Polyamide (PA), Nylon
Material Polyamide
Mounting Type Board Mount
Mount Cable
Contact Plating Tin

Supply Chain

Factory Lead Time 4 Weeks
