1788635
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

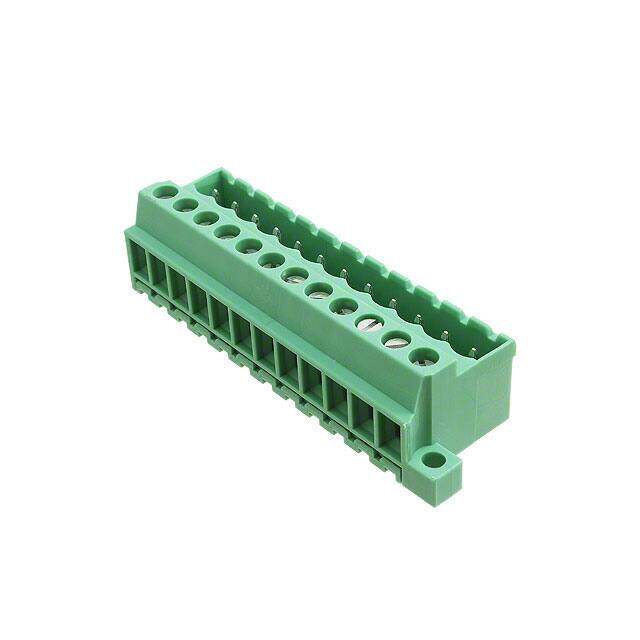

Pluggable Terminal Blocks 12 Pos 5.08mm pitch Box Header
PDF
/
Buying Options
Total Price: USD $17.71
Unit Price: USD $17.7144
≥1 USD $17.7144
≥10 USD $17.22864
≥100 USD $16.10136
≥500 USD $14.813304
≥1000 USD $14.535946
Inventory: 67
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 7 Weeks
Physical
Contact Plating Tin
Mount Cable, Panel
Mounting Type Board Mount
Material Polyamide
Housing Material Polyamide (PA), Nylon
Weight 206.999996g
Technical
Packaging Bulk
Published 2011
Series COMBICON MVSTBU
Feature Mounting Flange
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Connector Type Plug
Type Receptacle, Male Pins
Number of Positions 12
Color Green
Number of Rows 1
Gender Female
Voltage - Rated 320V
Additional Feature PA, 94V-2
HTS Code 8536.69.40.40
Pitch 0.200 5.08mm
Orientation Straight
Depth 20.4mm
Insulation Height 0.681 17.30mm
Reach Compliance Code unknown
Current Rating 12A
Termination Style Screw
Number of Contacts 12
Voltage 300V
Max Current Rating 12A
Number of Levels 1
Current 10A
Wire Gauge (Max) 12 AWG
Wire Gauge (Min) 24 AWG
Number of Decks 1
Wire Gauge or Range - AWG 12-30 AWG
Voltage - IEC 630V
Torque - Screw 0.5-0.6 Nm (4.4-5.3 Lb-In)
Number of Ways 12
Safety Approval UL
Wire Gauge or Range - mm2 0.2-2.5mm2
Wire Strip Length 7mm
Screw Size M3
Wire Cross Section 2.5 mm2
Dimensions
Height 20.4mm
Length 72.28mm
Width 17.3mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
