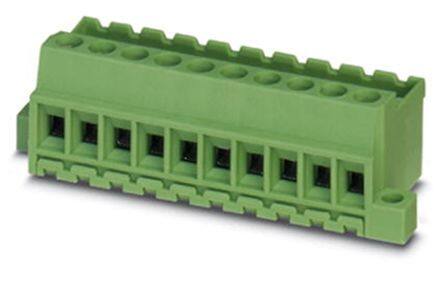

1788606 image
Favorite
1788606 image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description Pluggable Terminal Blocks 9 Pos 5.08mm pitch Box Header
PDF
/
Buying Options
Total Price: USD $15.26
Unit Price: USD $15.263539
≥1 USD $15.263539
≥10 USD $14.399565
≥100 USD $13.58449
≥500 USD $12.815557
≥1000 USD $12.090161
Inventory: 1891
Minimum: 1
-
+

Technical Details

Compliance

Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0

Dimensions

Width 57.04mm
Length 17.3mm
Height 20.4mm

Technical

Wire Cross Section 2.5 mm2
Screw Size M3
Current - IEC 12A
Wire Strip Length 7mm
Wire Gauge or Range - mm2 0.2-2.5mm2
Safety Approval CB; CSA; CUL; EAC; UL; VDE
Number of Ways 9
Torque - Screw 0.5-0.6 Nm (4.4-5.3 Lb-In)
Voltage - IEC 630V
Wire Gauge or Range - AWG 12-30 AWG
Number of Decks 1
Wire Gauge (Min) 12 AWG
Wire Gauge (Max) 30 AWG
Current 10A
Number of Levels 1
Voltage 300V
Termination Style Screw
Current Rating 12A
Reach Compliance Code not_compliant
Insulation Height 0.681 17.30mm
Pitch 0.200 5.08mm
Voltage - Rated 320V
Number of Rows 1
Color Green
Number of Positions 9
Type Receptacle, Male Pins
Connector Type Plug
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Mounting Flange
Series COMBICON MVSTBU
Published 2011
Packaging Bulk

Physical

Weight 206.999996g
Housing Material Polyamide (PA), Nylon
Mounting Type Board Mount
Contact Plating Tin

Supply Chain

Factory Lead Time 4 Weeks
