1788583
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

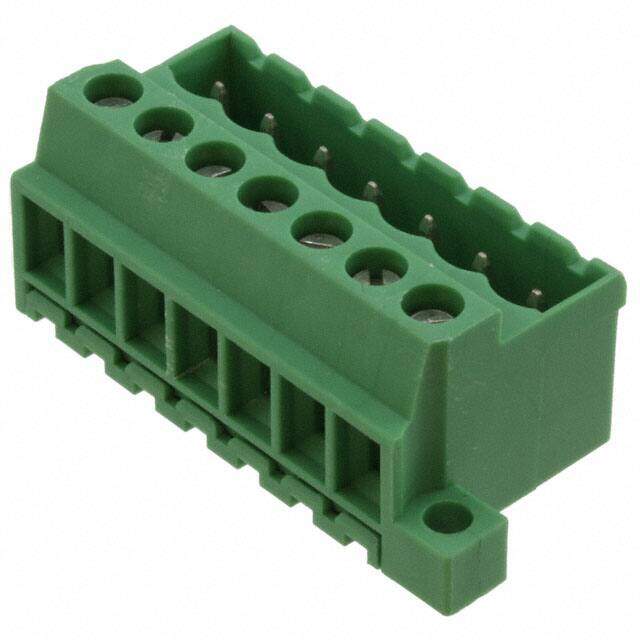

Pluggable Terminal Blocks 7 Pos 5.08mm pitch Box Header
PDF
/
Buying Options
Total Price: USD $10.3
Unit Price: USD $10.3048
≥1 USD $10.3048
≥10 USD $10.02496
≥100 USD $9.36936
≥500 USD $8.619864
≥1000 USD $8.458454
Inventory: 56
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Technical
Rated Voltage 320V
Wire Cross Section 2.5 mm2
Screw Size M3
Current - IEC 12A
Wire Strip Length 7mm
Wire Gauge or Range - mm2 0.2-2.5mm2
Safety Approval UL
Number of Ways 7
Torque - Screw 0.5-0.6 Nm (4.4-5.3 Lb-In)
Voltage - IEC 630V
Current - UL 10A
Wire Gauge or Range - AWG 12-30 AWG
Number of Decks 1
Voltage - UL 300V
Contact Mating Finish Tin
Number of Levels 1
Termination Style Screw
Insulation Height 0.681 17.30mm
Pitch 0.200 5.08mm
HTS Code 8536.69.40.40
Additional Feature PA, 94V-2
Number of Rows 1
Color Green
Number of Positions 7
Type Receptacle, Male Pins
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Mounting Flange
Series COMBICON MVSTBU
Published 2012
Packaging Bulk
Physical
Housing Material Polyamide (PA), Nylon
Mounting Type Board Mount
Supply Chain
Factory Lead Time 4 Weeks
