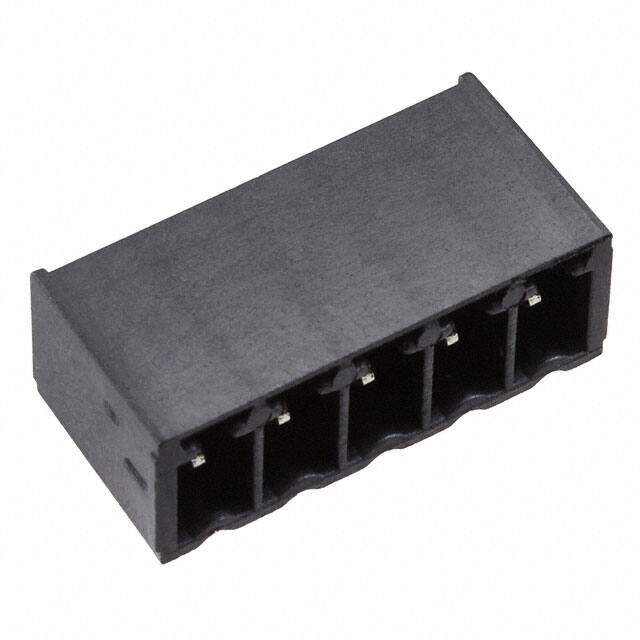

1788563 image
Favorite
1788563 image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description 5 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.138" (3.50mm) 90°, Right AngleThrough Hole
PDF
/
Buying Options
Total Price: USD $1.87
Unit Price: USD $1.8744
≥1 USD $1.8744
≥10 USD $1.8216
≥100 USD $1.7028
≥500 USD $1.566576
≥1000 USD $1.537254
Inventory: 315
Minimum: 1
-
+

Technical Details

Technical

Termination Style Solder
Voltage 300V
Contact Tail Length 0.102 2.60mm
Number of Levels 1
Current 8A
Contact Mating Finish Tin
Voltage - UL 300V
Number of Decks 1
Number of Ways 5
Safety Approval UL
Header Orientation 90°, Right Angle
Number of Positions Per Level 5
Fastening Method CONNECTOR
Current Rating 8A
Reach Compliance Code unknown
Insulation Height 0.272 6.91mm
Pitch 0.138 3.50mm
Additional Feature STANDARD: UL 94V-0, LCP
Voltage - Rated 250V
Number of Rows 1
Color Black
Type Header, Male Pins, Shrouded (4 Side)
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Series COMBICON MC
Published 2014
Packaging Bulk

Compliance

Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant

Physical

Housing Material Liquid Crystal Polymer (LCP)
Mounting Type Through Hole
Mount Through Hole

Supply Chain

Factory Lead Time 12 Weeks
