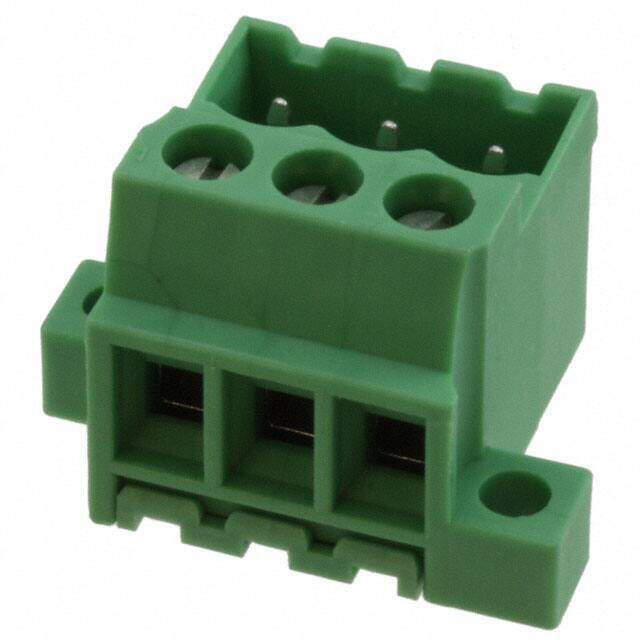

1788541
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
Pluggable Terminal Blocks 3 Pos 5.08mm pitch Box Header
PDF
/
Buying Options
Total Price: USD $4.45
Unit Price: USD $4.4528
≥1 USD $4.4528
≥10 USD $4.33048
≥100 USD $4.04712
≥500 USD $3.723368
≥1000 USD $3.653654
Inventory: 293
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
Flammability Rating UL94 V-2
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Dimensions
Width 26.56mm
Length 7mm
Height 20.4mm
Technical
Wire Cross Section 2.5 mm2
Screw Size M3
Current - IEC 12A
Wire Gauge or Range - mm2 0.2-2.5mm2
Safety Approval UL
Number of Ways 3
Torque - Screw 0.5-0.6 Nm (4.4-5.3 Lb-In)
Voltage - IEC 630V
Wire Gauge or Range - AWG 12-30 AWG
Number of Decks 1
Wire Gauge (Min) 24 AWG
Wire Gauge (Max) 12 AWG
Current 10A
Number of Levels 1
Voltage 300V
Termination Style Screw
Current Rating 12A
Insulation Height 0.681 17.30mm
Pitch 0.200 5.08mm
Additional Feature PA, 94V-2
Voltage - Rated 320V
Number of Rows 1
Color Green
Number of Positions 3
Type Receptacle, Male Pins
Connector Type Plug
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Mounting Flange
Series COMBICON MVSTBU
Published 2003
Packaging Bulk
Physical
Weight 206.999996g
Housing Material Polyamide (PA), Nylon
Mounting Type Board Mount
Contact Plating Tin
Supply Chain
Factory Lead Time 7 Weeks
