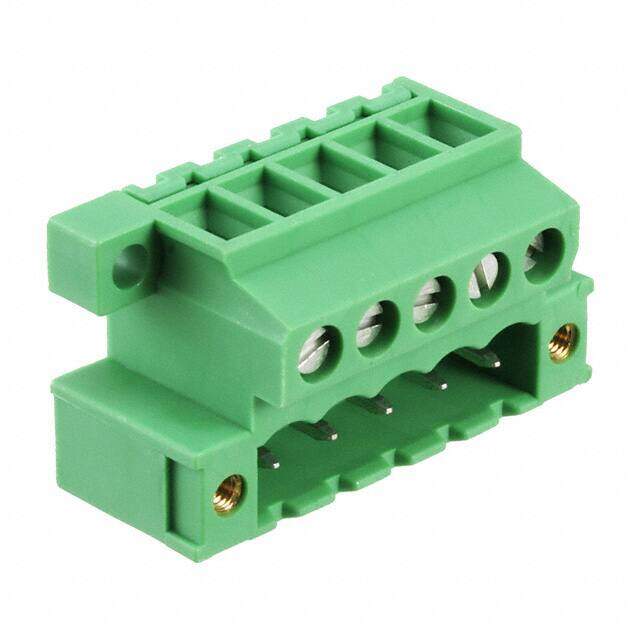

1788376
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
Pluggable Terminal Blocks 5 Pos 5.08mm pitch Box Header
PDF
/
Buying Options
Total Price: USD $9.83
Unit Price: USD $9.8296
≥1 USD $9.8296
≥10 USD $9.55944
≥100 USD $8.93376
≥500 USD $8.219112
≥1000 USD $8.0652
Inventory: 124
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Contact Plating Tin
Mounting Type Board Mount
Housing Material Polyamide (PA), Nylon
Weight 206.999996g
Technical
Packaging Bulk
Published 2011
Series COMBICON MVSTBU
Feature Mating and Mounting Flange
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Connector Type Plug, Screw
Type Receptacle, Male Pins
Number of Positions 5
Color Green
Number of Rows 1
Voltage - Rated 320V
Additional Feature PA, 94V-2
Pitch 0.200 5.08mm
Insulation Height 0.681 17.30mm
Reach Compliance Code unknown
Current Rating 12A
Termination Style Screw
Voltage 300V
Number of Levels 1
Current 10A
Wire Gauge (Max) 30 AWG
Wire Gauge (Min) 12 AWG
Number of Decks 1
Wire Gauge or Range - AWG 12-30 AWG
Voltage - IEC 630V
Torque - Screw 0.5-0.6 Nm (4.4-5.3 Lb-In)
Number of Ways 5
Safety Approval UL
Wire Gauge or Range - mm2 0.2-2.5mm2
Wire Strip Length 7mm
Current - IEC 12A
Screw Size M3
Dimensions
Height 20.4mm
Length 17.3mm
Width 36.72mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
