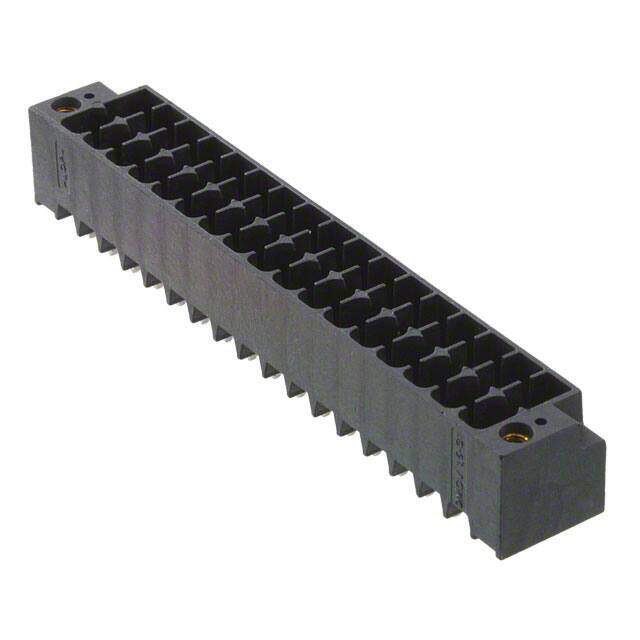

1787548 image
Favorite
1787548 image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description Pluggable Terminal Blocks 17 Pos 3.5mm Dbl Row Through Hole Header
PDF
/
Buying Options
Total Price: USD $12.89
Unit Price: USD $12.888018
≥1 USD $12.888018
≥10 USD $12.158514
≥100 USD $11.470292
≥500 USD $10.821025
≥1000 USD $10.20852
Inventory: 7340
Minimum: 1
-
+

Technical Details

Compliance

RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0

Dimensions

Width 66.5mm
Length 10.6mm
Height 12mm

Technical

Header Orientation Vertical
Positions Per Level 17
Voltage - IEC 250V
Current 8A
Number of Levels 2
Contact Tail Length 0.079 2.00mm
Voltage 150V
Termination Style Solder
Current Rating 8A
Insulation Height 0.394 10.00mm
Pitch 0.138 3.50mm
HTS Code 8536.69.40.40
Voltage - Rated 160V
Color Black
Number of Positions 34
Type Header, Male Pins, Shrouded (4 Side)
Connector Type Plug
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Mating and Mounting Flange
Series COMBICON DMCV
Published 2013
Packaging Bulk

Physical

Housing Material Liquid Crystal Polymer (LCP)
Mounting Type Through Hole
Mount Through Hole
Contact Plating Tin

Supply Chain

Factory Lead Time 5 Weeks
