1787535
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

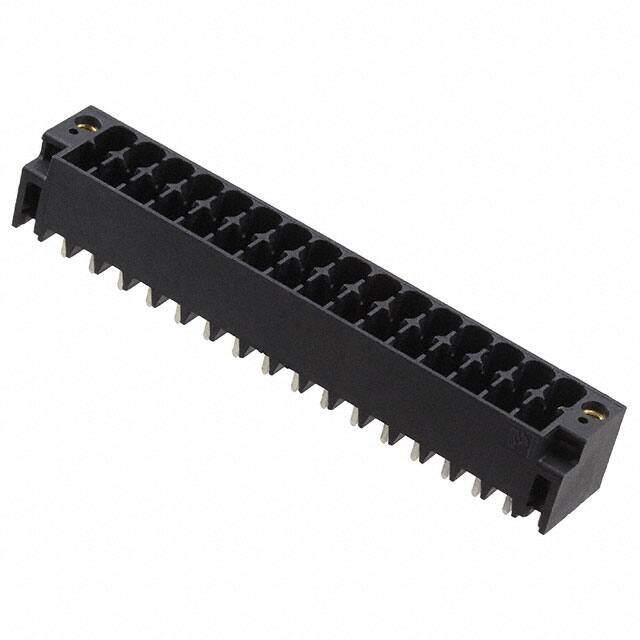

COMBICON DMCV RoHS Compliant 2011 Mating and Mounting Flange Terminal Block Header, Male Pins, Shrouded (4 Side) Vertical 8A 150V 12mm
PDF
/
Buying Options
Total Price: USD $8.18
Unit Price: USD $8.1752
≥1 USD $8.1752
Inventory: 107
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Dimensions
Width 63mm
Length 10.6mm
Height 12mm
Technical
Header Orientation Vertical
Positions Per Level 16
Voltage - IEC 250V
Current 8A
Number of Levels 2
Contact Tail Length 0.079 2.00mm
Voltage 150V
Termination Style Solder
Current Rating 8A
Insulation Height 0.394 10.00mm
Pitch 0.138 3.50mm
HTS Code 8536.69.40.40
Voltage - Rated 160V
Color Black
Number of Positions 32
Type Header, Male Pins, Shrouded (4 Side)
Connector Type Plug
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Mating and Mounting Flange
Series COMBICON DMCV
Published 2011
Packaging Bulk
Physical
Housing Material Liquid Crystal Polymer (LCP)
Mounting Type Through Hole
Mount Through Hole
Contact Plating Tin
Supply Chain
Factory Lead Time 3 Weeks
