RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets

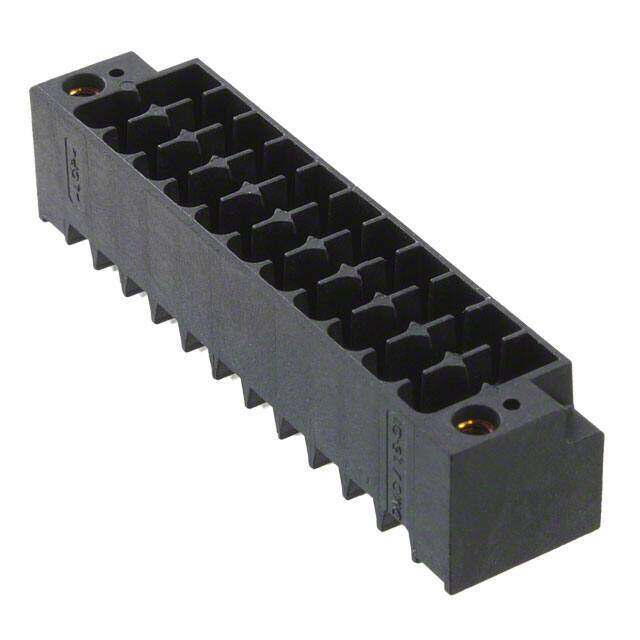

Description COMBICON DMCV RoHS Compliant 2013 Mating and Mounting Flange Terminal Block Header, Male Pins, Shrouded (4 Side) Vertical 8A 150V 12mm
PDF
/
Buying Options
Total Price: USD $5.96
Unit Price: USD $5.9576
≥1 USD $5.9576
Inventory: 91
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 3 Weeks

Physical

Contact Plating Tin
Mount Through Hole
Mounting Type Through Hole
Housing Material Liquid Crystal Polymer (LCP)

Technical

Packaging Bulk
Published 2013
Series COMBICON DMCV
Feature Mating and Mounting Flange
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Connector Type Plug
Type Header, Male Pins, Shrouded (4 Side)
Number of Positions 22
Color Black
Voltage - Rated 160V
HTS Code 8536.69.40.40
Pitch 0.138 3.50mm
Insulation Height 0.394 10.00mm
Current Rating 8A
Termination Style Solder
Voltage 150V
Contact Tail Length 0.079 2.00mm
Number of Levels 2
Current 8A
Voltage - IEC 250V
Positions Per Level 11
Header Orientation Vertical

Dimensions

Height 12mm
Length 10.6mm
Width 45.5mm

Compliance

Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
