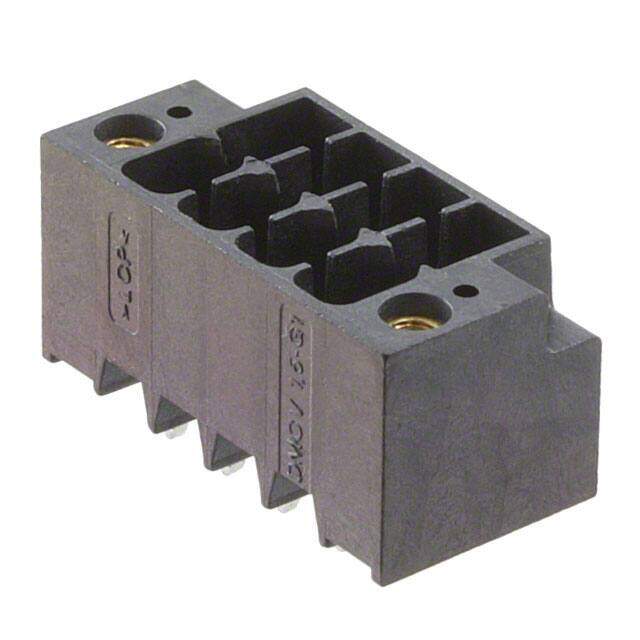

1787412 image
Favorite
1787412 image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description Terminal Block Header, 4, 160 V, 8 A, 3.5 Mm, Through Hole Vertical, Header Rohs Compliant: Yes
PDF
/
Buying Options
Total Price: USD $3.13
Unit Price: USD $3.1328
≥1 USD $3.1328
≥10 USD $3.05096
≥100 USD $2.8512
≥500 USD $2.623104
≥1000 USD $2.574
Inventory: 161
Minimum: 1
-
+

Technical Details

Compliance

Lead Free Lead Free
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0

Dimensions

Width 21mm
Length 21mm
Height 12mm

Technical

Number of Positions Per Level 4
Header Orientation Vertical
Voltage - IEC 250V
Voltage - UL 150V
Current 8A
Number of Levels 2
Max Current Rating 8A
Contact Tail Length 0.079 2.00mm
Voltage 150V
Termination Style Solder
Current Rating 8A
Insulation Height 0.394 10.00mm
Depth 10.6mm
Pitch 0.138 3.50mm
Voltage - Rated 160V
Gender Male
Color Black
Number of Positions 8
Type Header, Male Pins, Shrouded (4 Side)
Connector Type Plug
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Mating and Mounting Flange
Series COMBICON DMCV
Published 2013
Packaging Bulk

Physical

Housing Material Liquid Crystal Polymer (LCP)
Mounting Type Through Hole
Mount Through Hole
Contact Plating Tin

Supply Chain

Factory Lead Time 3 Weeks
