1787292
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

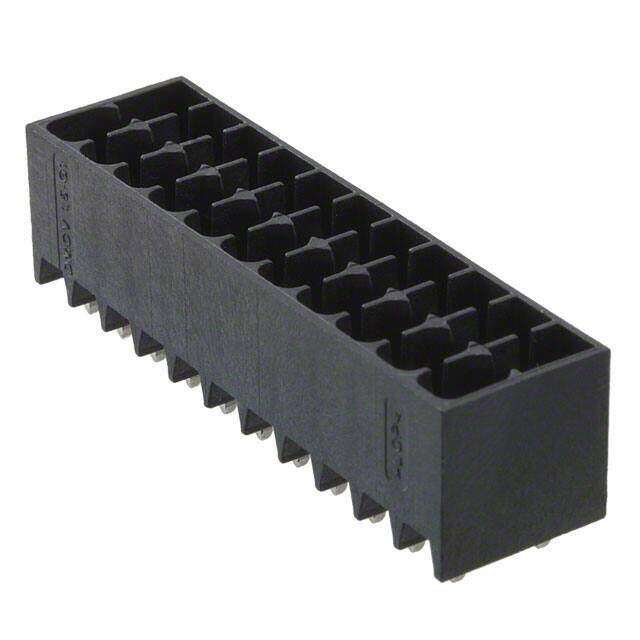

Pluggable Terminal Blocks 11 Pos 3.5mm Dbl Row Through Hole Header
PDF
/
Inventory: 4872
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 5 Weeks
Physical
Contact Plating Tin
Mount Through Hole
Mounting Type Through Hole
Housing Material Liquid Crystal Polymer (LCP)
Technical
Packaging Bulk
Published 2013
Series COMBICON DMCV
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Connector Type Plug
Type Header, Male Pins, Shrouded (4 Side)
Number of Positions 22
Color Black
Voltage - Rated 160V
HTS Code 8536.69.40.40
Pitch 0.138 3.50mm
Insulation Height 0.394 10.00mm
Current Rating 8A
Termination Style Solder
Voltage 150V
Contact Tail Length 0.079 2.00mm
Number of Levels 2
Current 8A
Voltage - IEC 250V
Positions Per Level 11
Header Orientation Vertical
Dimensions
Height 12mm
Length 10.6mm
Width 39.3mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
