1787250
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

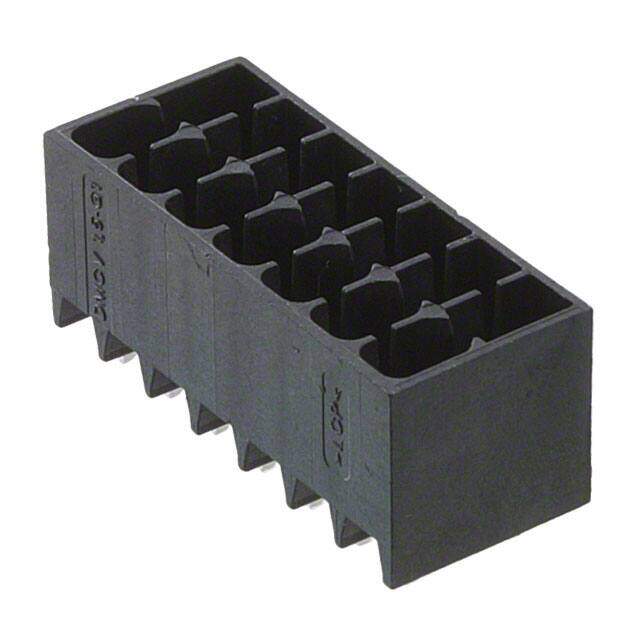

Pluggable Terminal Blocks 7 Pos 3.5mm Dbl Row Through Hole Header
PDF
/
Buying Options
Total Price: USD $3.24
Unit Price: USD $3.2384
≥1 USD $3.2384
Inventory: 91
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 3 Weeks
Physical
Contact Plating Tin
Mount Through Hole
Mounting Type Through Hole
Housing Material Liquid Crystal Polymer (LCP)
Technical
Packaging Bulk
Published 2013
Series COMBICON DMCV
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Connector Type Plug
Type Header, Male Pins, Shrouded (4 Side)
Number of Positions 14
Color Black
Number of Rows 2
Voltage - Rated 160V
Additional Feature STANDARD: UL 94V-0, LCP
HTS Code 8536.69.40.40
Pitch 0.138 3.50mm
Insulation Height 0.394 10.00mm
Current Rating 8A
Termination Style Solder
Voltage 150V
Contact Tail Length 0.079 2.00mm
Number of Levels 2
Current 8A
Number of Decks 1
Voltage - IEC 250V
Positions Per Level 7
Number of Ways 7
Safety Approval CB; CUL; UL; VDE
Header Orientation Vertical
Fastening Method CONNECTOR
Dimensions
Height 12mm
Length 10.6mm
Width 25.3mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
