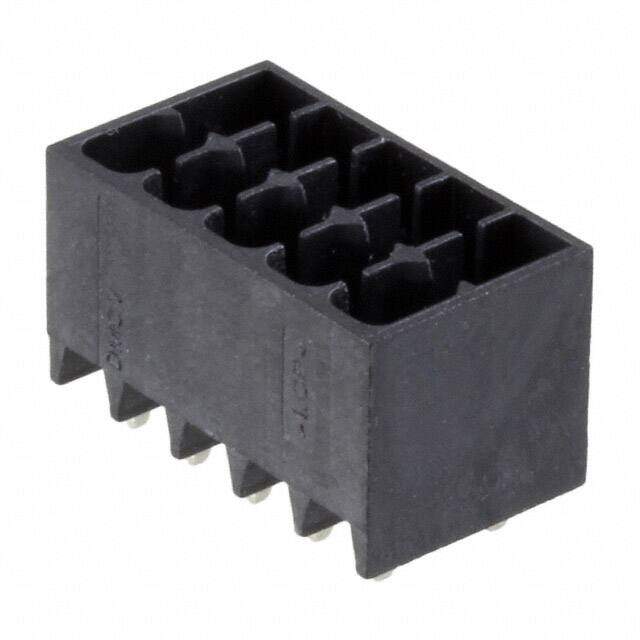

1787234 image
Favorite
1787234 image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description Terminal Block Header, 5, 160 V, 8 A, 3.5 mm, Through Hole Vertical, Header
PDF
/
Buying Options
Total Price: USD $2.33
Unit Price: USD $2.332
≥1 USD $2.332
Inventory: 418
Minimum: 1
-
+

Technical Details

Compliance

RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0

Dimensions

Width 18.3mm
Length 10.6mm
Height 12mm

Technical

Fastening Method CONNECTOR
Number of Positions Per Level 5
Header Orientation Vertical
Safety Approval UL
Number of Ways 10
Voltage - IEC 250V
Number of Decks 1
Voltage - UL 150V
Current 8A
Number of Levels 2
Contact Tail Length 0.079 2.00mm
Voltage 150V
Termination Style Solder
Current Rating 8A
Insulation Height 0.394 10.00mm
Pitch 0.138 3.50mm
Additional Feature STANDARD: UL94V-0, LCP
Voltage - Rated 160V
Gender Male
Number of Rows 2
Color Black
Number of Positions 10
Type Header, Male Pins, Shrouded (4 Side)
Connector Type Plug
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Series COMBICON DMCV
Published 2013
Packaging Bulk

Physical

Housing Material Liquid Crystal Polymer (LCP)
Mounting Type Through Hole
Mount Through Hole
Contact Plating Tin

Supply Chain

Factory Lead Time 3 Weeks
