1787221
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

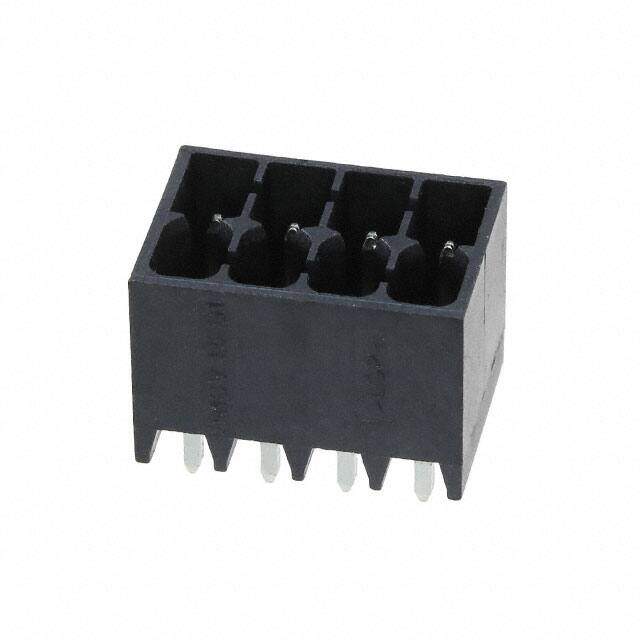

Pluggable Terminal Blocks 4 Pos 3.5mm Dbl Row Through Hole Header
PDF
/
Buying Options
Total Price: USD $2.16
Unit Price: USD $2.1648
≥1 USD $2.1648
≥10 USD $2.10144
≥100 USD $1.96416
≥500 USD $1.806992
≥1000 USD $1.7732
Inventory: 121
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 3 Weeks
Physical
Contact Plating Tin
Mount Through Hole
Mounting Type Through Hole
Housing Material Liquid Crystal Polymer (LCP)
Technical
Packaging Bulk
Published 2011
Series COMBICON DMCV
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Connector Type Plug
Type Header, Male Pins, Shrouded (4 Side)
Number of Positions 8
Color Black
Number of Rows 2
Voltage - Rated 160V
Pitch 0.138 3.50mm
Insulation Height 0.394 10.00mm
Current Rating 8A
Termination Style Solder
Contact Gender Male
Voltage 150V
Contact Tail Length 0.079 2.00mm
Number of Levels 2
Current 8A
Number of Poles 4
Number of Decks 1
Voltage - IEC 250V
Number of Ways 4
Safety Approval CB; CUL; UL; VDE
Header Orientation Vertical
Fastening Method CONNECTOR
Test Voltage 2.5kV
Dimensions
Height 12mm
Length 10.6mm
Width 14.8mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
