1787218
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

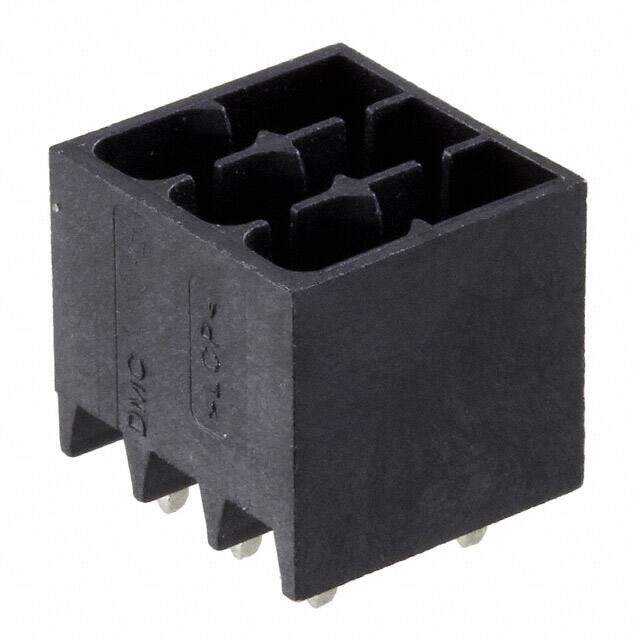

Terminal Block Header, 3, 160 V, 8 A, 3.5 Mm, Through Hole Vertical, Header Rohs Compliant: Yes
PDF
/
Buying Options
Total Price: USD $1.65
Unit Price: USD $1.6456
≥1 USD $1.6456
≥10 USD $1.6016
≥100 USD $1.49688
≥500 USD $1.377112
≥1000 USD $1.351363
Inventory: 883
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Dimensions
Width 12mm
Length 10.6mm
Height 11.3mm
Technical
Fastening Method CONNECTOR
Number of Positions Per Level 3
Header Orientation Vertical
Safety Approval CB; CUL; UL; VDE
Number of Ways 3
Voltage - IEC 250V
Number of Decks 1
Voltage - UL 150V
Current 8A
Number of Levels 2
Contact Tail Length 0.079 2.00mm
Voltage 150V
Termination Style Solder
Current Rating 8A
Insulation Height 0.394 10.00mm
Pitch 0.138 3.50mm
Additional Feature STANDARD: UL 94V-0, LCP
Voltage - Rated 160V
Gender Male
Number of Rows 2
Color Black
Number of Positions 6
Type Header, Male Pins, Shrouded (4 Side)
Connector Type Plug
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series COMBICON DMCV
Published 2011
Packaging Bulk
Physical
Housing Material Liquid Crystal Polymer (LCP)
Mounting Type Through Hole
Mount Through Hole
Contact Plating Tin
Supply Chain
Factory Lead Time 3 Weeks
Alternative Model
