1787205
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

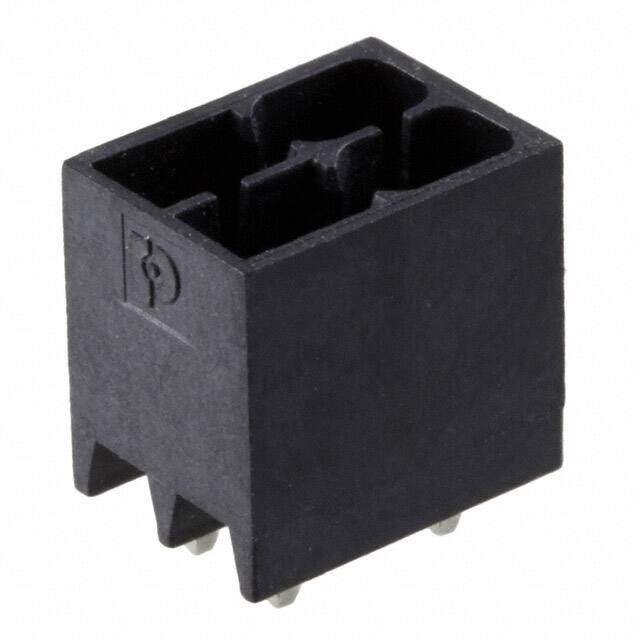

Pluggable Terminal Blocks 2 Pos 3.5mm Dbl Row Through Hole Header
PDF
/
Buying Options
Total Price: USD $0.9
Unit Price: USD $0.8976
≥1 USD $0.8976
Inventory: 265
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Dimensions
Width 12mm
Length 7.8mm
Height 10.6mm
Technical
Header Orientation Vertical
Voltage - IEC 250V
Voltage - UL 150V
Number of Poles 2
Current 8A
Contact Tail Length 0.079 2.00mm
Voltage 150V
Termination Style Solder
Current Rating 8A
Insulation Height 0.394 10.00mm
Pitch 0.138 3.50mm
Voltage - Rated 160V
Gender Male
Color Black
Number of Positions 4
Type Header, Male Pins, Shrouded (4 Side)
Connector Type Plug
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series COMBICON DMCV
Published 2011
Packaging Bulk
Physical
Housing Material Liquid Crystal Polymer (LCP)
Mounting Type Through Hole
Mount Through Hole
Contact Plating Tin
Supply Chain
Factory Lead Time 3 Weeks
