1787195
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

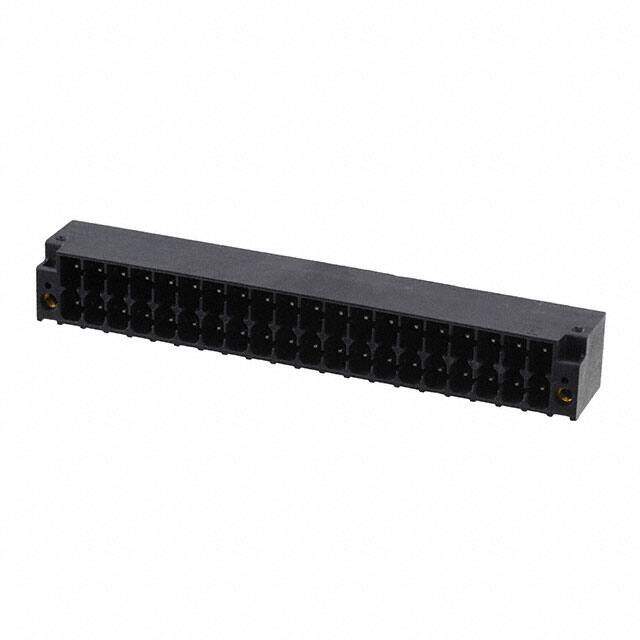

Pluggable Terminal Blocks 20 Pos 3.5mm Dbl Row Through Hole Header
PDF
/
Buying Options
Total Price: USD $9.99
Unit Price: USD $9.988
≥1 USD $9.988
Inventory: 189
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 3 Weeks
Physical
Contact Plating Tin
Mount Through Hole
Mounting Type Through Hole
Housing Material Liquid Crystal Polymer (LCP)
Technical
Packaging Bulk
Published 2011
Series COMBICON DMC
Feature Mating and Mounting Flange
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Connector Type Plug
Type Header, Male Pins, Shrouded (4 Side)
Number of Positions 40
Color Black
Voltage - Rated 160V
Pitch 0.138 3.50mm
Insulation Height 0.425 10.80mm
Current Rating 8A
Termination Style Solder
Voltage 150V
Contact Tail Length 0.079 2.00mm
Number of Levels 2
Current 8A
Voltage - UL 150V
Voltage - IEC 250V
Header Orientation 90°, Right Angle
Number of Positions Per Level 20
Dimensions
Height 12.8mm
Length 11.6mm
Width 77mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
