1787111
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

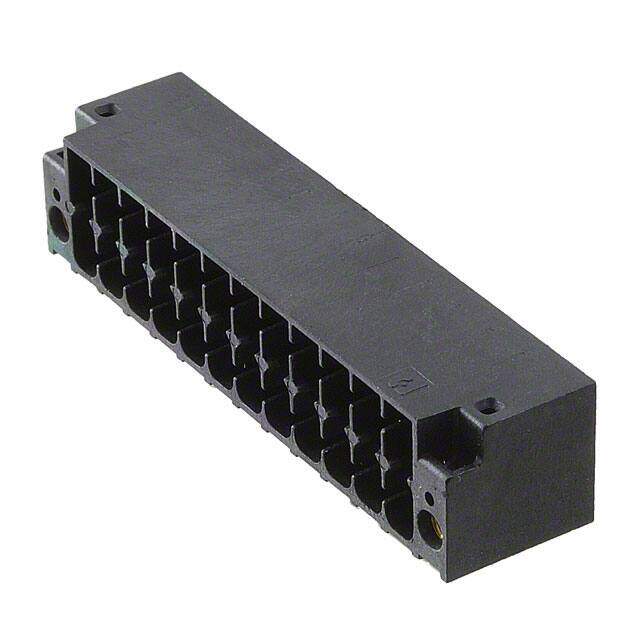

Pin header, straight [Phoenix Contact] DMC 1, 5/12-G1F-3, 5-LR P20THR Pin header, straight 4046356596725
PDF
/
Buying Options
Total Price: USD $7.55
Unit Price: USD $7.5504
≥1 USD $7.5504
≥10 USD $7.34712
≥100 USD $6.86664
≥500 USD $6.317344
≥1000 USD $6.199037
Inventory: 250
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 3 Weeks
Physical
Contact Plating Tin
Mount Through Hole
Mounting Type Through Hole
Housing Material Liquid Crystal Polymer (LCP)
Technical
Packaging Bulk
Published 2013
Series COMBICON DMC
Feature Mating and Mounting Flange
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Connector Type Plug
Type Header, Male Pins, Shrouded (4 Side)
Number of Positions 24
Color Black
Number of Rows 2
Gender Male
Voltage - Rated 160V
Additional Feature STANDARD: UL 94V-0, LCP
HTS Code 8536.69.40.40
Pitch 0.138 3.50mm
Insulation Height 0.425 10.80mm
Current Rating 8A
Termination Style Solder
Voltage 150V
Contact Tail Length 0.079 2.00mm
Number of Levels 2
Current 8A
Voltage - UL 150V
Number of Decks 1
Voltage - IEC 250V
Number of Ways 12
Safety Approval CB; CUL; UL; VDE
Header Orientation 90°, Right Angle
Number of Positions Per Level 12
Fastening Method CONNECTOR
Dimensions
Height 12.8mm
Length 11.6mm
Width 49mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Lead Free Lead Free
