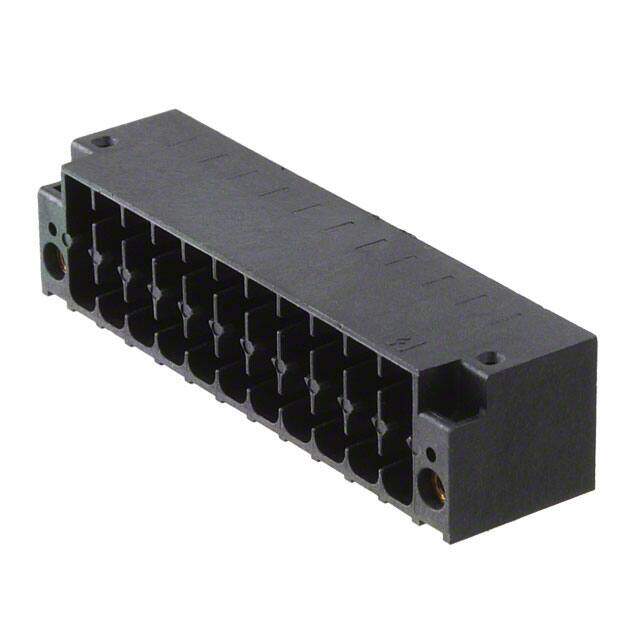

1787108
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
Conn Wire to Board HDR 11 POS 3.5mm Solder RA Thru-Hole
PDF
/
Buying Options
Total Price: USD $8.2
Unit Price: USD $8.199044
≥1 USD $8.199044
≥10 USD $7.734951
≥100 USD $7.297118
≥500 USD $6.884078
≥1000 USD $6.49441
Inventory: 7697
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 3 Weeks
Physical
Contact Plating Tin
Mount Through Hole
Mounting Type Through Hole
Housing Material Liquid Crystal Polymer (LCP)
Technical
Packaging Bulk
Published 2011
Series COMBICON DMC
Feature Mating and Mounting Flange
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Connector Type Plug
Type Header, Male Pins, Shrouded (4 Side)
Number of Positions 22
Color Black
Number of Rows 2
Voltage - Rated 160V
Additional Feature STANDARD: UL 94V-0, LCP
Pitch 0.138 3.50mm
Orientation Right Angle
Depth 11.6mm
Insulation Height 0.425 10.80mm
Reach Compliance Code unknown
Current Rating 8A
Termination Style Solder
Voltage 150V
Contact Tail Length 0.079 2.00mm
Max Current Rating 8A
Number of Levels 2
Current 8A
Number of Decks 1
Voltage - IEC 250V
Positions Per Level 11
Number of Ways 11
Safety Approval CB; CUL; EAC; UL; VDE
Header Orientation 90°, Right Angle
Fastening Method CONNECTOR
Dimensions
Height 10.95mm
Length 45.5mm
Width 45.5mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Lead Free Lead Free
