1787098
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

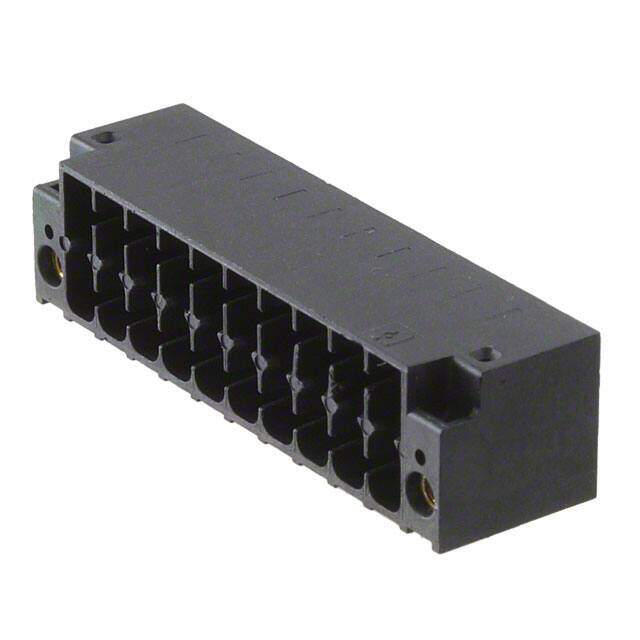

Terminal Block Header, 10, 160 V, 8 A, 3.5 mm, Through Hole Right Angle, Header
PDF
/
Buying Options
Total Price: USD $7.39
Unit Price: USD $7.394973
≥1 USD $7.394973
≥10 USD $6.976393
≥100 USD $6.581494
≥500 USD $6.208957
≥1000 USD $5.857506
Inventory: 9445
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Dimensions
Width 42mm
Length 42mm
Height 10.95mm
Technical
Fastening Method CONNECTOR
Number of Positions Per Level 10
Header Orientation 90°, Right Angle
Safety Approval CUL; UL
Number of Ways 10
Voltage - IEC 250V
Number of Decks 2
Current 8A
Number of Levels 2
Max Current Rating 8A
Contact Tail Length 0.079 2.00mm
Voltage 150V
Termination Style Solder
Current Rating 8A
Insulation Height 0.425 10.80mm
Depth 11.6mm
Orientation Right Angle
Pitch 0.138 3.50mm
HTS Code 8536.69.40.40
Additional Feature STANDARD: UL 94V-0, LCP
Voltage - Rated 160V
Number of Rows 2
Color Black
Number of Positions 20
Type Header, Male Pins, Shrouded (4 Side)
Connector Type Plug
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Mating and Mounting Flange
Series COMBICON DMC
Published 2011
Packaging Bulk
Physical
Housing Material Liquid Crystal Polymer (LCP)
Mounting Type Through Hole
Mount Through Hole
Contact Plating Tin
Supply Chain
Factory Lead Time 3 Weeks
