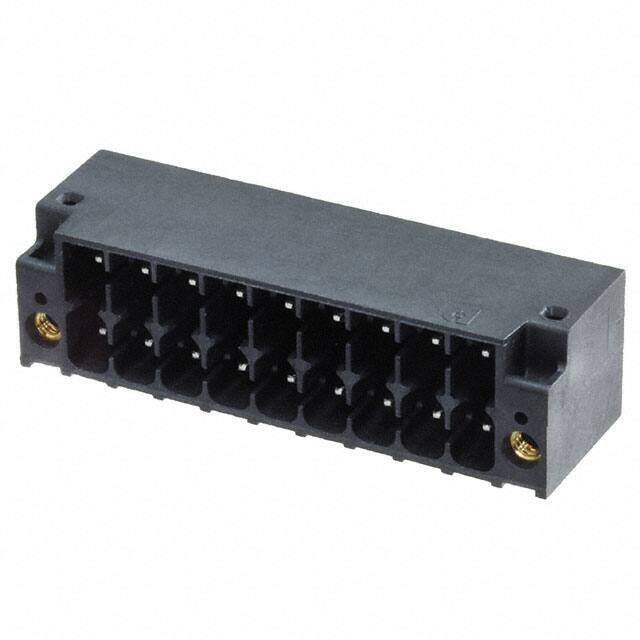

1787085
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
TERM BLOCK HDR 18POS 90DEG 3.5MM
PDF
/
Buying Options
Total Price: USD $4.98
Unit Price: USD $4.9808
≥1 USD $4.9808
Inventory: 76
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Dimensions
Width 38.5mm
Length 11.6mm
Height 12.8mm
Technical
Number of Positions Per Level 9
Header Orientation 90°, Right Angle
Voltage - IEC 250V
Voltage - UL 150V
Current 8A
Number of Levels 2
Contact Tail Length 0.079 2.00mm
Voltage 150V
Termination Style Solder
Current Rating 8A
Insulation Height 0.425 10.80mm
Pitch 0.138 3.50mm
Voltage - Rated 160V
Gender Male
Color Black
Number of Positions 18
Type Header, Male Pins, Shrouded (4 Side)
Connector Type Plug
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Mating and Mounting Flange
Series COMBICON DMC
Published 2011
Packaging Bulk
Physical
Housing Material Liquid Crystal Polymer (LCP)
Mounting Type Through Hole
Mount Through Hole
Contact Plating Tin
Supply Chain
Factory Lead Time 3 Weeks
