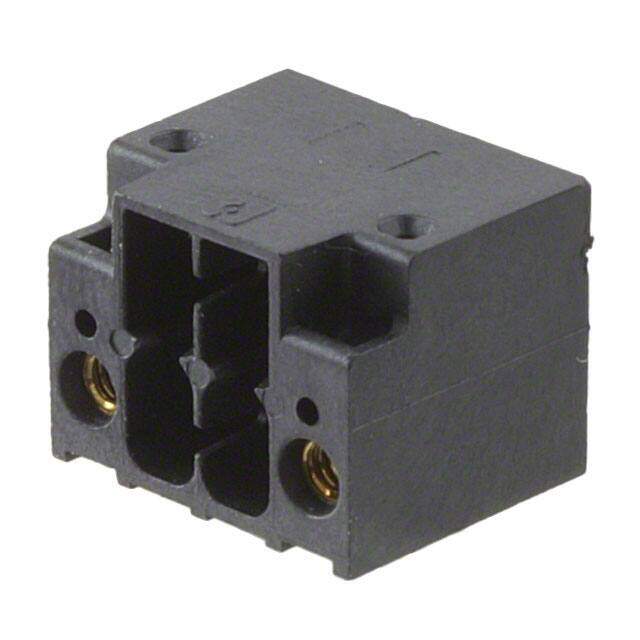

1787014
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
TERM BLOCK HDR 4POS 90DEG 3.5MM
PDF
/
Buying Options
Total Price: USD $2.03
Unit Price: USD $2.0328
≥1 USD $2.0328
≥10 USD $1.97472
≥100 USD $1.84536
≥500 USD $1.697696
≥1000 USD $1.665946
Inventory: 151
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 3 Weeks
Physical
Contact Plating Tin
Mount Through Hole
Mounting Type Through Hole
Housing Material Liquid Crystal Polymer (LCP)
Technical
Packaging Bulk
Published 2013
Series COMBICON DMC
Feature Mating and Mounting Flange
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Connector Type Plug
Type Header, Male Pins, Shrouded (4 Side)
Number of Positions 4
Color Black
Number of Rows 2
Voltage - Rated 160V
Pitch 0.138 3.50mm
Orientation Right Angle
Insulation Height 0.425 10.80mm
Reach Compliance Code unknown
Current Rating 8A
Termination Style Solder
Voltage 150V
Contact Tail Length 0.079 2.00mm
Max Current Rating 8A
Current 8A
Number of Poles 2
Number of Decks 1
Voltage - IEC 250V
Number of Ways 2
Safety Approval CB; CUL; UL; VDE
Header Orientation 90°, Right Angle
Fastening Method CONNECTOR
Ambient Temperature Range High 70°C
Dimensions
Height 10.95mm
Length 11.6mm
Width 14mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Lead Free Lead Free
