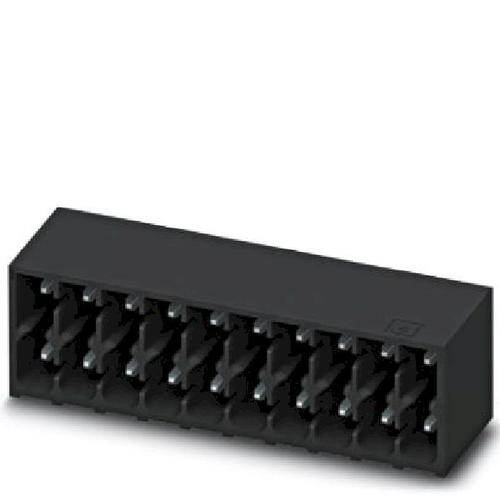

1786992
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
Pluggable Terminal Blocks 18 Pos 3.5mm Dbl Row Through Hole Header
PDF
/
Inventory: 1112
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Dimensions
Width 63.8mm
Length 11.6mm
Height 12.8mm
Technical
Number of Positions Per Level 18
Header Orientation 90°, Right Angle
Voltage - IEC 250V
Voltage - UL 150V
Current 8A
Number of Levels 2
Contact Tail Length 0.079 2.00mm
Voltage 150V
Termination Style Solder
Current Rating 8A
Insulation Height 0.425 10.80mm
Pitch 0.138 3.50mm
Voltage - Rated 160V
Color Black
Number of Positions 36
Type Header, Male Pins, Shrouded (4 Side)
Connector Type Plug
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series COMBICON DMC
Published 2011
Packaging Bulk
Physical
Housing Material Liquid Crystal Polymer (LCP)
Mounting Type Through Hole
Mount Through Hole
Contact Plating Tin
Supply Chain
Factory Lead Time 5 Weeks
