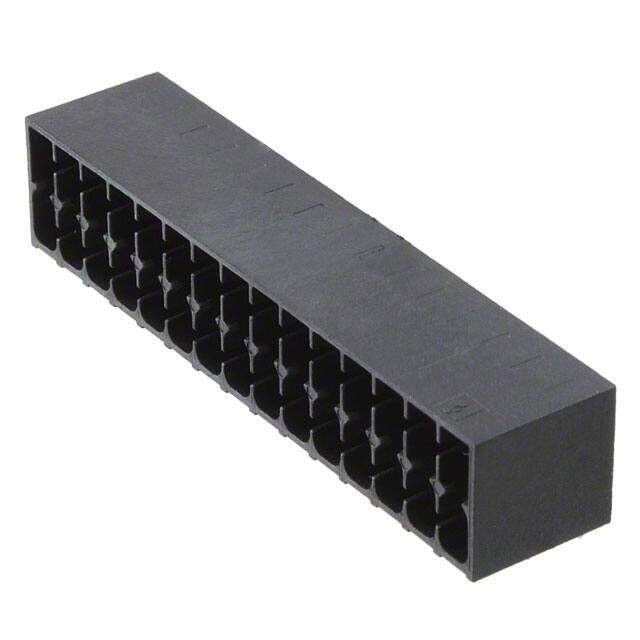

1786963 image
Favorite
1786963 image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description Pluggable Terminal Blocks 15 Pos 3.5mm Dbl Row Through Hole Header
PDF
/
Inventory: 1608
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Supply Chain

Factory Lead Time 5 Weeks

Physical

Contact Plating Tin
Mount Through Hole
Mounting Type Through Hole
Housing Material Liquid Crystal Polymer (LCP)

Technical

Packaging Bulk
Published 2013
Series COMBICON DMC
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Connector Type Plug
Type Header, Male Pins, Shrouded (4 Side)
Number of Positions 30
Color Black
Voltage - Rated 160V
HTS Code 8536.69.40.40
Pitch 0.138 3.50mm
Insulation Height 0.425 10.80mm
Current Rating 8A
Termination Style Solder
Contact Gender Male
Voltage 150V
Contact Tail Length 0.079 2.00mm
Number of Levels 2
Current 8A
Voltage - IEC 250V
Header Orientation 90°, Right Angle
Number of Positions Per Level 15
Test Voltage 2.5kV

Dimensions

Height 12.8mm
Length 11.6mm
Width 53.3mm

Compliance

Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
