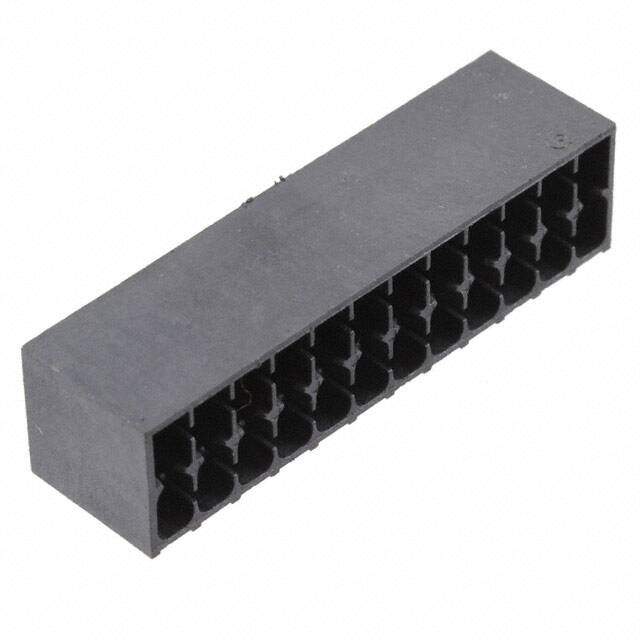

1786934 image
Favorite
1786934 image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description Pluggable Terminal Blocks 12 Pos 3.5mm Dbl Row Through Hole Header
PDF
/
Buying Options
Total Price: USD $6.6
Unit Price: USD $6.6
≥1 USD $6.6
≥10 USD $6.424
≥100 USD $6.00336
≥500 USD $5.523144
≥1000 USD $5.419709
Inventory: 86
Minimum: 1
-
+

Technical Details

Compliance

RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0

Dimensions

Width 42.8mm
Length 42.8mm
Height 12.8mm

Technical

Header Orientation 90°, Right Angle
Positions Per Level 12
Voltage - IEC 250V
Current 8A
Number of Levels 2
Max Current Rating 8A
Contact Tail Length 0.079 2.00mm
Voltage 150V
Termination Style Solder
Current Rating 8A
Insulation Height 0.425 10.80mm
Depth 11.6mm
Orientation Right Angle
Pitch 0.138 3.50mm
HTS Code 8536.69.40.40
Voltage - Rated 160V
Color Black
Number of Positions 24
Type Header, Male Pins, Shrouded (4 Side)
Connector Type Plug
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series COMBICON DMC
Published 2011
Packaging Bulk

Physical

Housing Material Liquid Crystal Polymer (LCP)
Mounting Type Through Hole
Mount Through Hole
Contact Plating Tin

Supply Chain

Factory Lead Time 3 Weeks
