1786905
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

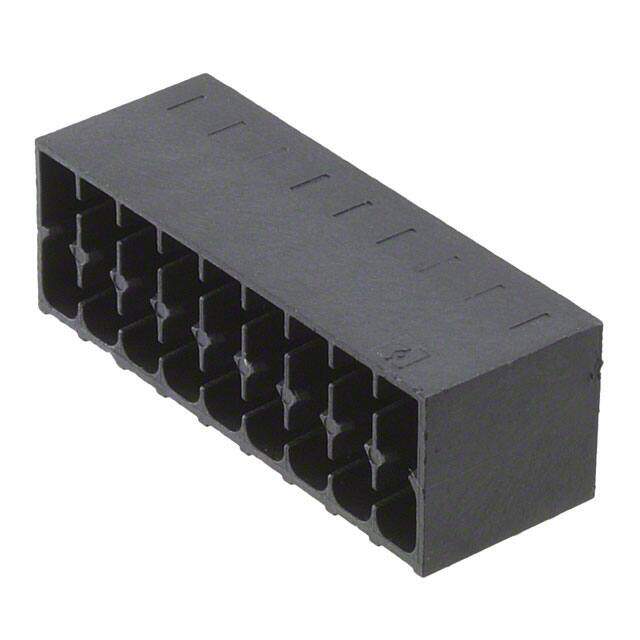

Pluggable Terminal Blocks 9 Pos 3.5mm Dbl Row Through Hole Header
PDF
/
Buying Options
Total Price: USD $4.94
Unit Price: USD $4.9368
≥1 USD $4.9368
≥10 USD $4.8048
≥100 USD $4.49064
≥500 USD $4.131424
≥1000 USD $4.054054
Inventory: 150
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Dimensions
Width 32.3mm
Length 32.3mm
Height 12.8mm
Technical
Fastening Method CONNECTOR
Number of Positions Per Level 9
Header Orientation 90°, Right Angle
Safety Approval CB; CUL; UL; VDE
Number of Ways 18
Voltage - IEC 250V
Number of Decks 1
Current 8A
Number of Levels 2
Max Current Rating 8A
Contact Tail Length 0.079 2.00mm
Voltage 150V
Termination Style Solder
Current Rating 8A
Reach Compliance Code unknown
Insulation Height 0.425 10.80mm
Depth 11.6mm
Orientation Right Angle
Pitch 0.138 3.50mm
Voltage - Rated 160V
Gender Male
Number of Rows 2
Color Black
Number of Positions 18
Type Header, Male Pins, Shrouded (4 Side)
Connector Type Plug
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series COMBICON DMC
Published 2013
Packaging Bulk
Physical
Housing Material Liquid Crystal Polymer (LCP)
Mounting Type Through Hole
Mount Through Hole
Contact Plating Tin
Supply Chain
Factory Lead Time 3 Weeks
Alternative Model
