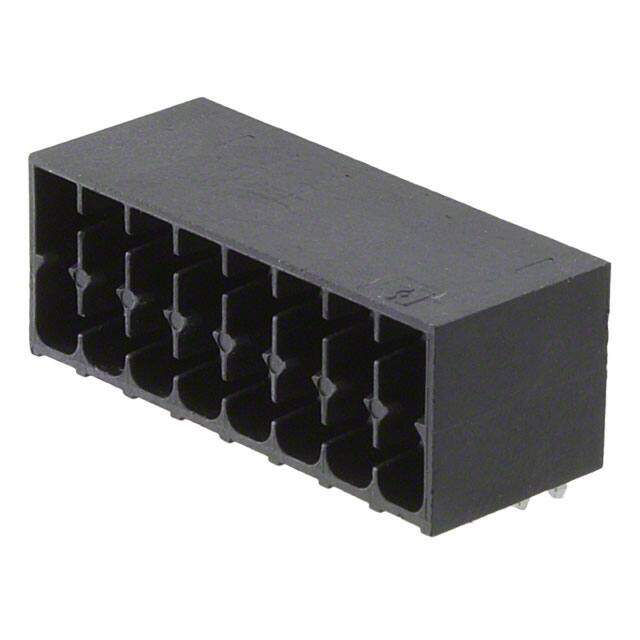

1786895
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
TERM BLOCK HDR 16POS 90DEG 3.5MM
PDF
/
Buying Options
Total Price: USD $4.4
Unit Price: USD $4.4
≥1 USD $4.4
≥10 USD $4.27944
≥100 USD $3.9996
≥500 USD $3.679632
≥1000 USD $3.610746
Inventory: 2039
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 3 Weeks
Physical
Contact Plating Tin
Mount Through Hole
Mounting Type Through Hole
Housing Material Liquid Crystal Polymer (LCP)
Technical
Packaging Bulk
Published 2013
Series COMBICON DMC
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Connector Type Plug
Type Header, Male Pins, Shrouded (4 Side)
Number of Positions 16
Color Black
Number of Rows 2
Gender Male
Voltage - Rated 160V
Additional Feature STANDARD: UL 94V-0, LCP
Pitch 0.138 3.50mm
Orientation Right Angle
Depth 11.6mm
Insulation Height 0.425 10.80mm
Current Rating 8A
Termination Style Solder
Voltage 150V
Contact Tail Length 0.079 2.00mm
Max Current Rating 8A
Number of Levels 2
Current 8A
Number of Decks 1
Voltage - IEC 250V
Number of Ways 16
Safety Approval CB; CUL; UL; VDE
Header Orientation 90°, Right Angle
Number of Positions Per Level 8
Fastening Method CONNECTOR
Dimensions
Height 12.8mm
Length 28.8mm
Width 28.8mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Lead Free Lead Free
