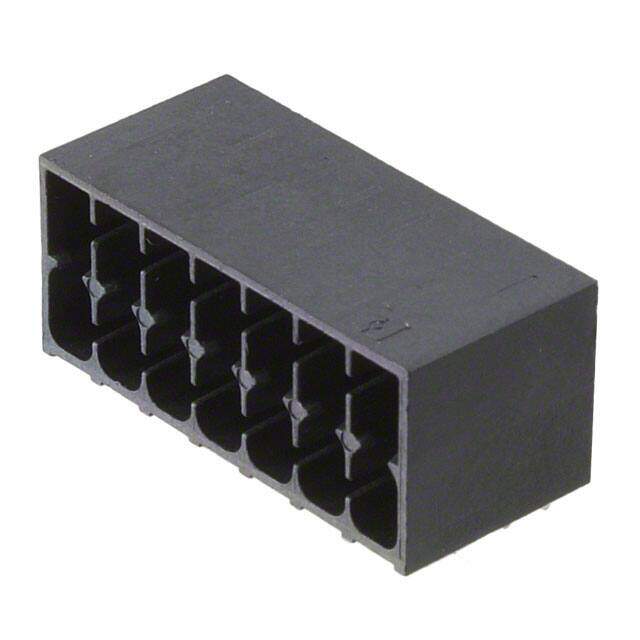

1786882 image
Favorite
1786882 image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description Connector; PCB Header; 7Position; 8A; 160V; DMC 1 5/ 7-G1-3 5 P20THR
PDF
/
Buying Options
Total Price: USD $3.85
Unit Price: USD $3.8544
≥1 USD $3.8544
≥10 USD $3.74528
≥100 USD $3.50064
≥500 USD $3.220624
≥1000 USD $3.160291
Inventory: 87
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 3 Weeks

Physical

Contact Plating Tin
Mount Through Hole
Mounting Type Through Hole
Housing Material Liquid Crystal Polymer (LCP)

Technical

Packaging Bulk
Published 2011
Series COMBICON DMC
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Connector Type Plug
Type Header, Male Pins, Shrouded (4 Side)
Number of Positions 14
Color Black
Number of Rows 2
Voltage - Rated 160V
Additional Feature STANDARD: UL 94V-0, LCP
HTS Code 8536.69.40.40
Pitch 0.138 3.50mm
Insulation Height 0.425 10.80mm
Current Rating 8A
Termination Style Solder
Voltage 150V
Contact Tail Length 0.079 2.00mm
Number of Levels 2
Current 8A
Number of Decks 1
Voltage - IEC 250V
Positions Per Level 7
Number of Ways 14
Safety Approval CB; CUL; UL; VDE
Header Orientation 90°, Right Angle
Fastening Method CONNECTOR

Dimensions

Height 12.8mm
Length 11.6mm
Width 25.3mm

Compliance

Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
