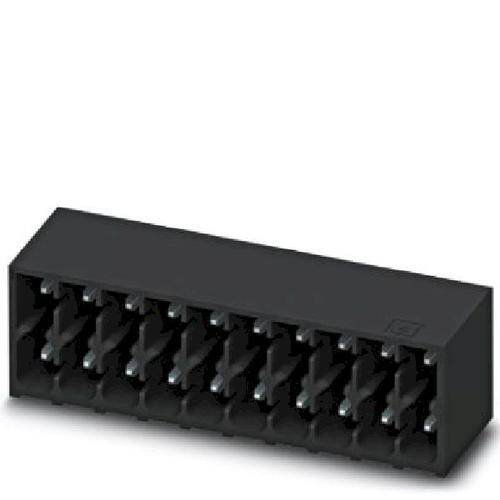

1786879
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
Pluggable Terminal Blocks 6 Pos 3.5mm Dbl Row Through Hole Header
PDF
/
Buying Options
Total Price: USD $3.34
Unit Price: USD $3.3352
≥1 USD $3.3352
≥10 USD $3.24544
≥100 USD $3.03336
≥500 USD $2.790656
≥1000 USD $2.738454
Inventory: 1211
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Dimensions
Width 21.8mm
Length 11.6mm
Height 10.95mm
Technical
Fastening Method CONNECTOR
Number of Positions Per Level 6
Header Orientation 90°, Right Angle
Safety Approval CB; CUL; UL; VDE
Number of Ways 12
Voltage - IEC 250V
Number of Decks 1
Voltage - UL 150V
Current 8A
Number of Levels 2
Contact Tail Length 0.079 2.00mm
Voltage 150V
Termination Style Solder
Current Rating 8A
Insulation Height 0.425 10.80mm
Pitch 0.138 3.50mm
Additional Feature STANDARD: UL 94V-0, LCP
Voltage - Rated 160V
Gender Male
Number of Rows 2
Color Black
Min Operating Temperature -40°C
Number of Positions 12
Type Header, Male Pins, Shrouded (4 Side)
Connector Type Plug
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series COMBICON DMC
Published 2011
Packaging Bulk
Physical
Housing Material Liquid Crystal Polymer (LCP)
Mounting Type Through Hole
Mount Through Hole
Contact Plating Tin
Supply Chain
Factory Lead Time 3 Weeks
