1786840
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

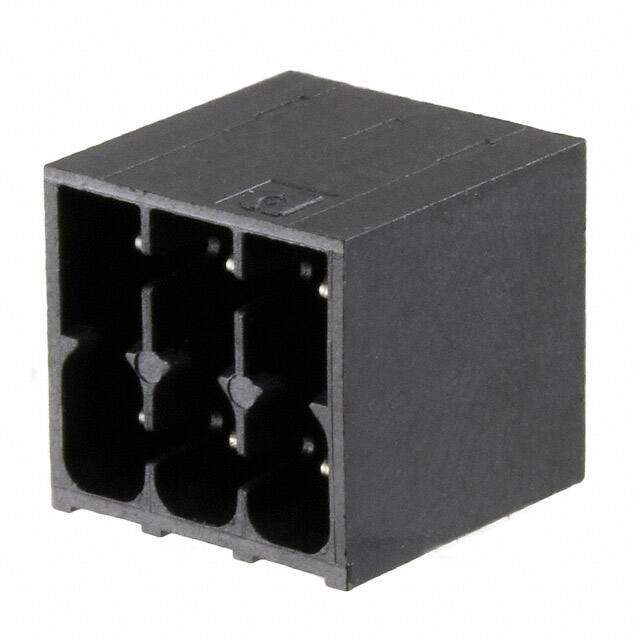

Terminal Block Header, 3, 160 V, 8 A, 3.5 Mm, Through Hole Right Angle, Header Rohs Compliant: Yes
PDF
/
Buying Options
Total Price: USD $1.38
Unit Price: USD $1.3816
≥1 USD $1.3816
Inventory: 1705
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 3 Weeks
Physical
Contact Plating Tin
Mount Through Hole
Mounting Type Through Hole
Housing Material Liquid Crystal Polymer (LCP)
Technical
Packaging Bulk
Published 2011
Series COMBICON DMC
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Connector Type Plug
Type Header, Male Pins, Shrouded (4 Side)
Number of Positions 6
Color Black
Number of Rows 2
Voltage - Rated 160V
Additional Feature STANDARD: UL 94V-0, LCP
Pitch 0.138 3.50mm
Orientation Right Angle
Depth 11.6mm
Insulation Height 0.425 10.80mm
Current Rating 8A
Termination Style Solder
Contact Gender Male
Voltage 150V
Contact Tail Length 0.079 2.00mm
Max Current Rating 8A
Number of Levels 2
Current 8A
Number of Poles 3
Number of Decks 1
Voltage - IEC 250V
Number of Ways 6
Safety Approval CB; CUL; UL; VDE
Header Orientation 90°, Right Angle
Fastening Method CONNECTOR
Test Voltage 2.5kV
Dimensions
Height 11.6mm
Length 11.3mm
Width 12.8mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Lead Free Lead Free
