1786653
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

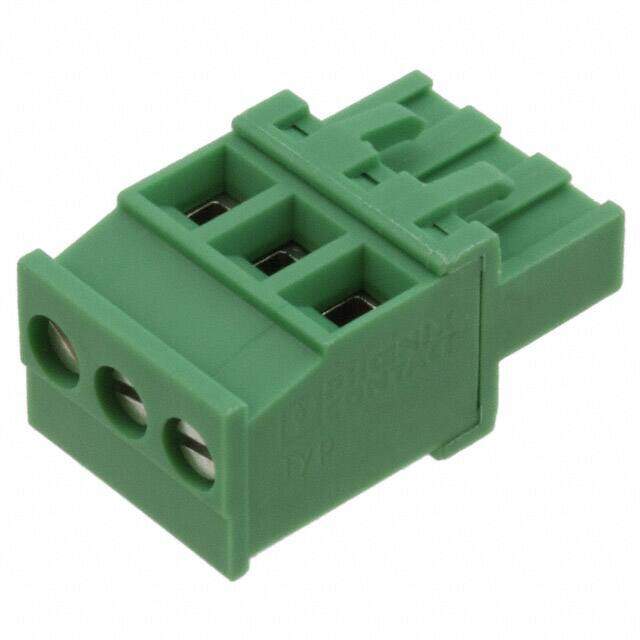

TERM BLOCK PLUG 3POS 5.08MM
PDF
/
Buying Options
Total Price: USD $5.17
Unit Price: USD $5.1656
≥1 USD $5.1656
≥10 USD $5.02832
≥100 USD $4.6992
≥500 USD $4.323264
≥1000 USD $3.99432
≥3000 USD $3.818109
Inventory: 79
Minimum: 1
-
+
Technical Details
Compliance
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Technical
Screw Size M3
Wire Strip Length 7mm
Wire Gauge or Range - mm2 0.2-2.5mm2
Plug Wire Entry 90°
Torque - Screw 0.5-0.6 Nm (4.4-5.3 Lb-In)
Voltage - IEC 630V
Wire Gauge or Range - AWG 12-30 AWG
Contact Mating Finish Gold
Wire Gauge (Min) 12 AWG
Wire Gauge (Max) 30 AWG
Current 15A
Number of Levels 1
Voltage 300V
Termination Style Screw - Rising Cage Clamp
Current Rating 12A
Reach Compliance Code not_compliant
Insulation Height 1.024 26.01mm
Pitch 0.200 5.08mm
Voltage - Rated 250V
Color Green
Number of Positions 3
Type Plug, Female Sockets
Connector Type Screw
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Retention Latches (Wire Side)
Series COMBICON MVSTBR
Published 2011
Packaging Bulk
Physical
Weight 6.179998g
Housing Material Polyamide (PA), Nylon
Mounting Type Free Hanging (In-Line)
Mount Free Hanging
Supply Chain
Factory Lead Time 4 Weeks
