RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets

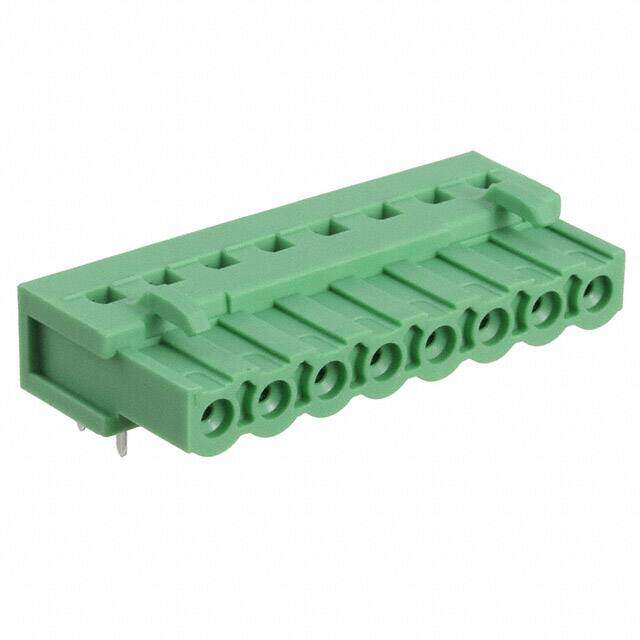

Description Conn; TermBlk; PCB; Header; SnglLvl; 90DegAngl; Sldr; 8Pole; 5.08mmPitch; COMBICON
PDF
/
Buying Options
Total Price: USD $7.24
Unit Price: USD $7.2424
≥1 USD $7.2424
≥10 USD $7.04264
≥100 USD $6.58152
≥500 USD $6.055016
≥1000 USD $5.941654
Inventory: 256
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 4 Weeks

Physical

Contact Plating Tin
Mount Through Hole
Mounting Type Through Hole
Housing Material Polyamide (PA), Nylon
Weight 164.000007g

Technical

Packaging Bulk
Published 2000
Series COMBICON IC
Feature Retention Latches
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Connector Type Socket
Type Header, Female Sockets
Color Green
Number of Rows 1
Voltage - Rated 320V
Additional Feature STANDARD: UL 94V-0, PA, SAFETY APPROVAL: VDE
Pitch 0.200 5.08mm
Orientation Right Angle
Depth 19mm
Insulation Height 0.402 10.20mm
Current Rating 12A
Termination Style Solder
Approval Agency CB, CSA, UL, VDE
Voltage 300V
Contact Tail Length 0.138 3.50mm
Max Current Rating 12A
Number of Levels 1
Current 12A
Number of Poles 8
Number of Decks 1
Current - UL 10A
Voltage - IEC 630V
Number of Ways 8
Safety Approval CB; CCA; CSA; CUL; EAC; UL
Header Orientation 90°, Right Angle
Fastening Method CONNECTOR

Dimensions

Height 19mm
Length 42.64mm
Width 42.64mm

Compliance

Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
