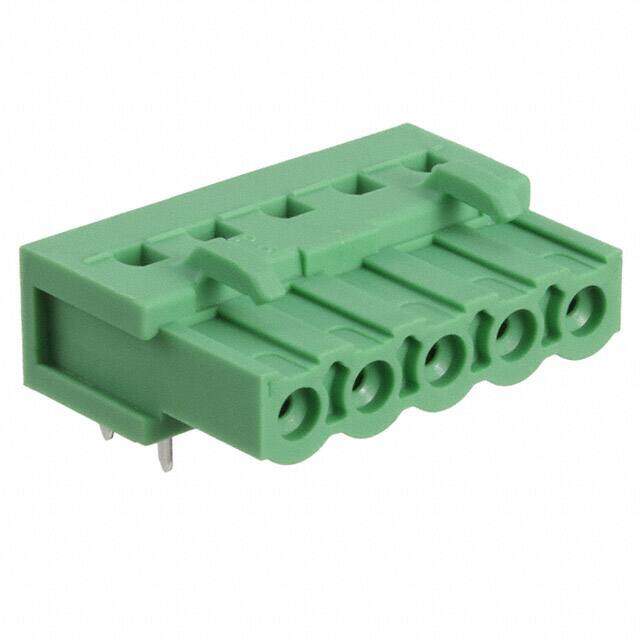

1786433
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
Conn Wire to Board HDR 5 POS 5.08mm Solder RA Thru-Hole
PDF
/
Buying Options
Total Price: USD $4.47
Unit Price: USD $4.4704
≥1 USD $4.4704
≥10 USD $4.3472
≥100 USD $4.06296
≥500 USD $3.737976
≥1000 USD $3.667946
Inventory: 408
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 7 Weeks
Physical
Contact Plating Tin
Mount Through Hole
Mounting Type Through Hole
Housing Material Polyamide (PA), Nylon
Weight 164.000007g
Technical
Packaging Bulk
Published 2000
Series COMBICON IC
Feature Retention Latches
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Connector Type Socket
Type Header, Female Sockets
Color Green
Number of Rows 1
Voltage - Rated 320V
Additional Feature STANDARD: UL 94V-0, PA, SAFETY APPROVAL: VDE
Pitch 0.200 5.08mm
Orientation Right Angle
Depth 19mm
Insulation Height 0.402 10.20mm
Current Rating 12A
Termination Style Solder
Approval Agency CB, CSA, UL, VDE
Voltage 300V
Contact Tail Length 0.138 3.50mm
Max Current Rating 12A
Number of Levels 1
Current 12A
Number of Poles 5
Number of Decks 1
Current - UL 10A
Voltage - IEC 630V
Number of Ways 5
Safety Approval CB; CCA; CSA; CUL; EAC; UL
Header Orientation 90°, Right Angle
Fastening Method CONNECTOR
Dimensions
Height 19mm
Length 27.4mm
Width 27.4mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
