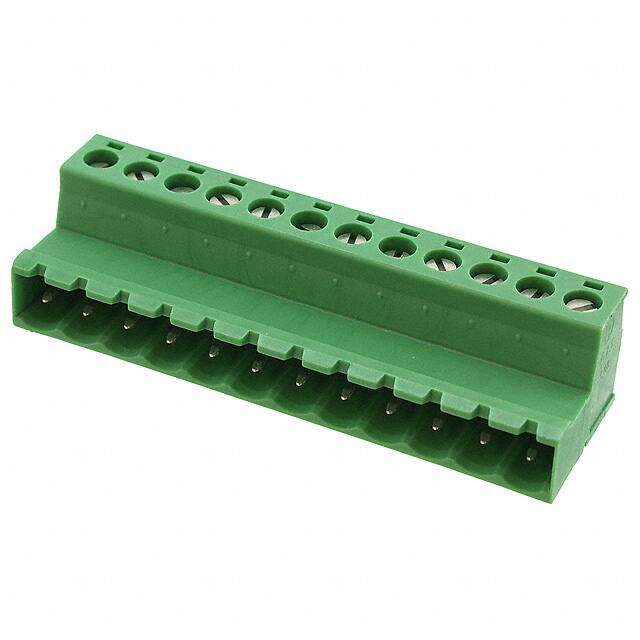

1786271 image
Favorite
1786271 image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description Pluggable Terminal Blocks 12 Pos 5.08mm Invert Plug 24-12AWG Screw
PDF
/
Buying Options
Total Price: USD $15.06
Unit Price: USD $15.0568
≥1 USD $15.0568
≥10 USD $14.64408
≥100 USD $13.68576
≥500 USD $12.590952
≥1000 USD $12.3552
Inventory: 232
Minimum: 1
-
+

Technical Details

Compliance

Lead Free Lead Free
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0

Dimensions

Width 62.46mm
Length 7mm
Height 19.2mm

Technical

Wire Cross Section 2.5 mm2
Screw Size M3
Number of Positions Per Level 12
Wire Gauge or Range - mm2 0.2-2.5mm2
Plug Wire Entry 180°
Safety Approval UL
Number of Ways 12
Torque - Screw 0.5-0.6 Nm (4.4-5.3 Lb-In)
Voltage - IEC 630V
Wire Gauge or Range - AWG 12-30 AWG
Number of Decks 1
Wire Gauge (Min) 24 AWG
Wire Gauge (Max) 12 AWG
Current 10A
Number of Levels 1
Max Current Rating 12A
Voltage 300V
Approval Agency CB, CSA, UL, VDE
Termination Style Screw - Rising Cage Clamp
Current Rating 12A
Insulation Height 0.591 15.00mm
Orientation Right Angle
Pitch 0.200 5.08mm
HTS Code 8536.69.40.40
Additional Feature PA, 94V-0
Voltage - Rated 250V
Number of Rows 1
Color Green
Type Plug, Male Pins
Connector Type Plug, Screw
ECCN Code EAR99
Termination Screw
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Series COMBICON IC
Published 2010
Packaging Bulk

Physical

Weight 137.000006g
Housing Material Polyamide (PA), Nylon
Material Nylon
Mounting Type Free Hanging (In-Line)
Mount Cable, Free Hanging
Contact Plating Tin

Supply Chain

Factory Lead Time 7 Weeks
