1786064
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

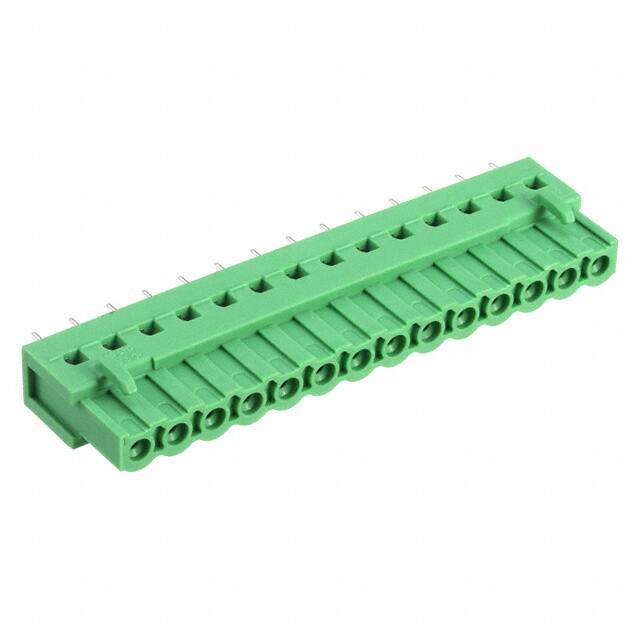

Header, Nominal current: 12 A, Nom. voltage: 320 V, Pitch: 5.08 mm, Number of positions: 14, Color: green, Assembly: ...
PDF
/
Buying Options
Total Price: USD $12.64
Unit Price: USD $12.6368
≥1 USD $12.6368
≥10 USD $12.28832
≥100 USD $11.484
≥500 USD $10.56528
≥1000 USD $10.367491
Inventory: 79
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Dimensions
Width 73.12mm
Length 73.12mm
Height 22.6mm
Technical
Header Orientation Vertical
Safety Approval UL
Number of Ways 14
Voltage - IEC 630V
Current - UL 10A
Number of Decks 1
Current 12A
Number of Levels 1
Max Current Rating 12A
Contact Tail Length 0.142 3.60mm
Voltage 300V
Termination Style Solder
Current Rating 12A
Reach Compliance Code unknown
Insulation Height 0.748 19.00mm
Depth 10.2mm
Pitch 0.200 5.08mm
HTS Code 8536.69.40.40
Additional Feature PA, 94V-0
Voltage - Rated 320V
Number of Rows 1
Color Green
Number of Positions 14
Type Header, Female Sockets
Connector Type Socket
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Retention Latches
Series COMBICON ICV
Published 2011
Packaging Bulk
Physical
Weight 165.000008g
Housing Material Polyamide (PA), Nylon
Mounting Type Through Hole
Mount Through Hole
Contact Plating Tin
Supply Chain
Factory Lead Time 4 Weeks
