1786048
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

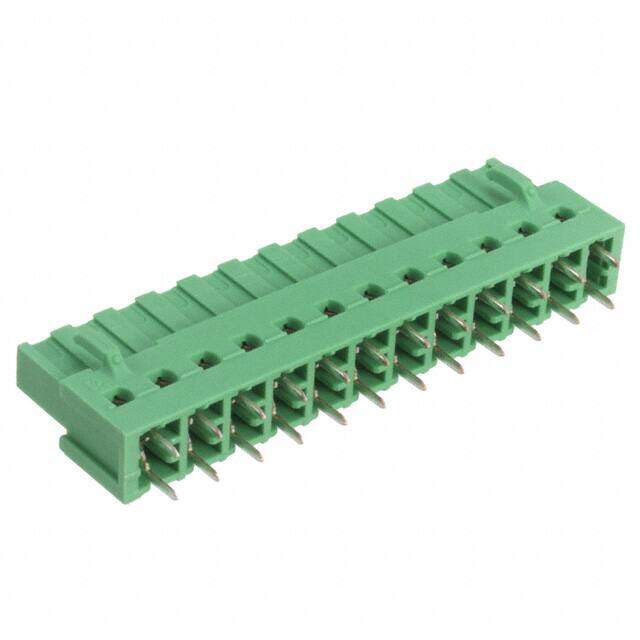

Conn Wire to Board HDR 12 POS 5.08mm Solder ST Thru-Hole
PDF
/
Buying Options
Total Price: USD $9.1
Unit Price: USD $9.0992
≥1 USD $9.0992
Inventory: 83
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Contact Plating Tin
Mount Through Hole
Mounting Type Through Hole
Housing Material Polyamide (PA), Nylon
Weight 165.000008g
Technical
Packaging Bulk
Published 2000
Series COMBICON ICV
Feature Retention Latches
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Connector Type Socket
Type Header, Female Sockets
Number of Positions 12
Color Green
Number of Rows 1
Voltage - Rated 320V
Additional Feature PA, 94V-0
HTS Code 8536.69.40.40
Pitch 0.200 5.08mm
Orientation Straight
Depth 10.2mm
Insulation Height 0.748 19.00mm
Reach Compliance Code unknown
Current Rating 12A
Termination Style Solder
Voltage 300V
Contact Tail Length 0.142 3.60mm
Max Current Rating 12A
Number of Levels 1
Current 10A
Number of Decks 1
Voltage - IEC 630V
Number of Ways 12
Safety Approval UL
Header Orientation Vertical
Number of Positions Per Level 12
Dimensions
Height 22.6mm
Length 62.96mm
Width 62.96mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
