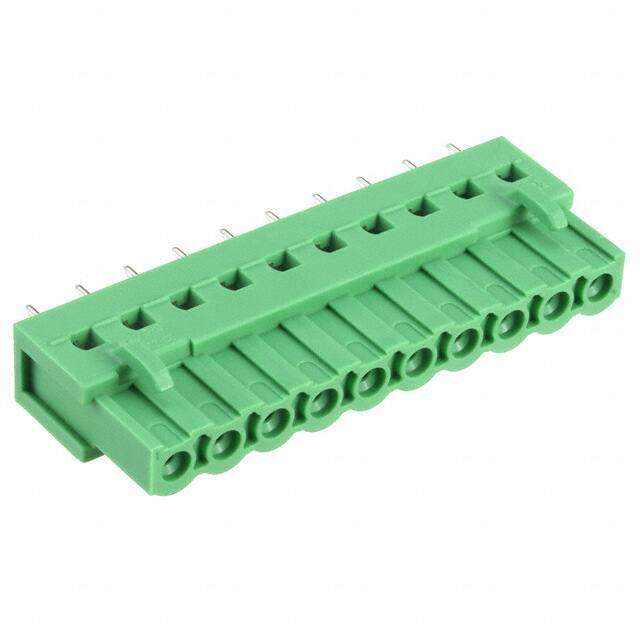

1786022
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
COMBICON ICV RoHS Compliant 2000 Straight Terminal Block Header, Female Sockets UL94V-0 Vertical 10A 300V
PDF
/
Buying Options
Total Price: USD $10.98
Unit Price: USD $10.978911
≥1 USD $10.978911
≥10 USD $10.357466
≥100 USD $9.771197
≥500 USD $9.218106
≥1000 USD $8.696324
Inventory: 7712
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Dimensions
Width 52.8mm
Length 52.8mm
Height 22.6mm
Technical
Fastening Method CONNECTOR
Number of Positions Per Level 10
Header Orientation Vertical
Safety Approval CB; CCA; CSA; CUL; EAC; UL
Number of Ways 10
Voltage - IEC 630V
Number of Decks 1
Contact Mating Finish Tin
Current 10A
Number of Levels 1
Max Current Rating 12A
ELV Compliant
Contact Tail Length 0.142 3.60mm
Voltage 300V
Termination Style Solder
Current Rating 12A
Insulation Height 0.748 19.00mm
Depth 10.2mm
Orientation Straight
Pitch 0.200 5.08mm
HTS Code 8536.69.40.40
Additional Feature STANDARD: UL 94V-0, PA, SAFETY APPROVAL: VDE
Voltage - Rated 320V
Number of Rows 1
Color Green
Number of Positions 10
Type Header, Female Sockets
Connector Type Socket
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Retention Latches
Series COMBICON ICV
Published 2000
Packaging Bulk
Physical
Weight 165.000008g
Housing Material Polyamide (PA), Nylon
Mounting Type Through Hole
Mount Through Hole
Contact Material Copper
Supply Chain
Factory Lead Time 7 Weeks
