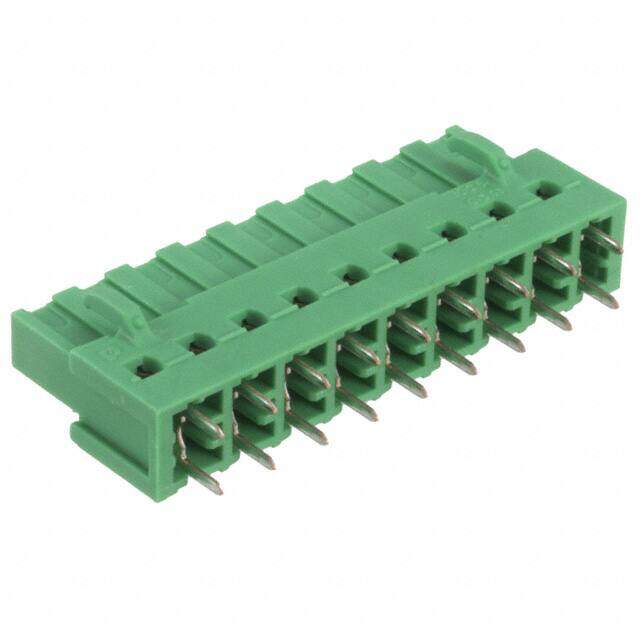

1786019
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
Combicon Series Inverted With Socket Contact Plug In Vertical To Pcb 9pos 12a 250vac Green Plastic Housing 5.08mm Pit...
PDF
/
Buying Options
Total Price: USD $10.99
Unit Price: USD $10.993664
≥1 USD $10.993664
≥10 USD $10.371377
≥100 USD $9.784317
≥500 USD $9.230494
≥1000 USD $8.708008
Inventory: 6312
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Contact Plating Tin
Mount Through Hole
Mounting Type Through Hole
Housing Material Polyamide (PA), Nylon
Weight 165.000008g
Technical
Packaging Bulk
Published 2010
Series COMBICON ICV
Feature Retention Latches
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Connector Type Socket
Type Header, Female Sockets
Number of Positions 9
Color Green
Number of Rows 1
Voltage - Rated 320V
Pitch 0.200 5.08mm
Insulation Height 0.748 19.00mm
Current Rating 12A
Termination Style Solder
Voltage 300V
Contact Tail Length 0.142 3.60mm
Number of Levels 1
Current 12A
Number of Decks 1
Current - UL 10A
Voltage - IEC 630V
Number of Ways 9
Safety Approval UL
Header Orientation Vertical
Dimensions
Height 22.6mm
Length 10.2mm
Width 47.72mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
