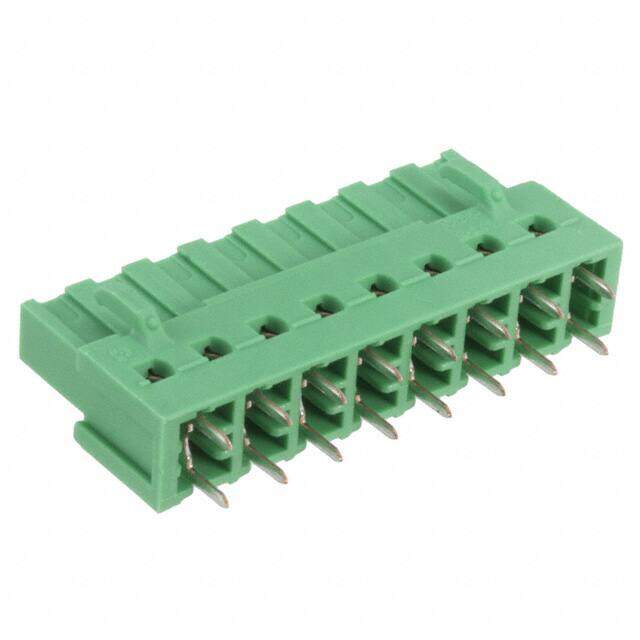

1786006
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
Pluggable Terminal Blocks 8 Pos 5.08mm pitch Thru Hole Invert Hdr
PDF
/
Buying Options
Total Price: USD $6.08
Unit Price: USD $6.0808
≥1 USD $6.0808
Inventory: 353
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Contact Material Copper
Mount Through Hole
Mounting Type Through Hole
Housing Material Polyamide (PA), Nylon
Weight 165.000008g
Technical
Packaging Bulk
Published 2000
Series COMBICON ICV
Feature Retention Latches
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Connector Type Socket
Type Header, Female Sockets
Number of Positions 8
Color Green
Number of Rows 1
Voltage - Rated 320V
Additional Feature PA, 94V-0
Pitch 0.200 5.08mm
Orientation Straight
Depth 10.2mm
Insulation Height 0.748 19.00mm
Current Rating 12A
Termination Style Solder
Approval Agency CB, CSA, UL, VDE
Voltage 300V
Contact Tail Length 0.142 3.60mm
Max Current Rating 12A
Number of Levels 1
Current 10A
Number of Poles 8
Contact Mating Finish Tin
Number of Decks 1
Voltage - IEC 630V
Number of Ways 8
Safety Approval UL
Header Orientation Vertical
Dimensions
Height 22.6mm
Length 42.64mm
Width 42.64mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
