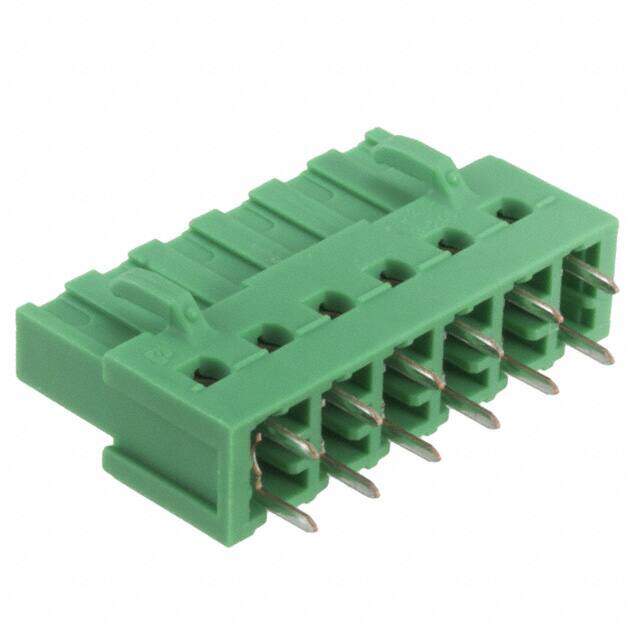

1785984 image
Favorite
1785984 image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description Conn Wire to Board HDR 6 POS 5.08mm Solder ST Thru-Hole
PDF
/
Buying Options
Total Price: USD $5.38
Unit Price: USD $5.3768
≥1 USD $5.3768
≥10 USD $5.22896
≥100 USD $4.88664
≥500 USD $4.495744
≥1000 USD $4.411546
Inventory: 292
Minimum: 1
-
+

Technical Details

Compliance

Lead Free Lead Free
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0

Dimensions

Width 32.48mm
Length 32.48mm
Height 22.6mm

Technical

Fastening Method CONNECTOR
Number of Positions Per Level 6
Header Orientation Vertical
Safety Approval CB; CCA; CSA; CUL; EAC; UL
Number of Ways 6
Voltage - IEC 630V
Number of Decks 1
Contact Mating Finish Tin
Current 10A
Number of Levels 1
Max Current Rating 12A
Contact Tail Length 0.142 3.60mm
Voltage 300V
Termination Style Solder
Current Rating 12A
Insulation Height 0.748 19.00mm
Depth 10.2mm
Orientation Straight
Pitch 0.200 5.08mm
Additional Feature STANDARD: UL 94V-0, PA, SAFETY APPROVAL: VDE
Voltage - Rated 320V
Number of Rows 1
Color Green
Number of Positions 6
Type Header, Female Sockets
Connector Type Socket
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Retention Latches
Series COMBICON ICV
Published 2000
Packaging Bulk

Physical

Weight 165.000008g
Housing Material Polyamide (PA), Nylon
Mounting Type Through Hole
Mount Through Hole
Contact Material Copper

Supply Chain

Factory Lead Time 7 Weeks
