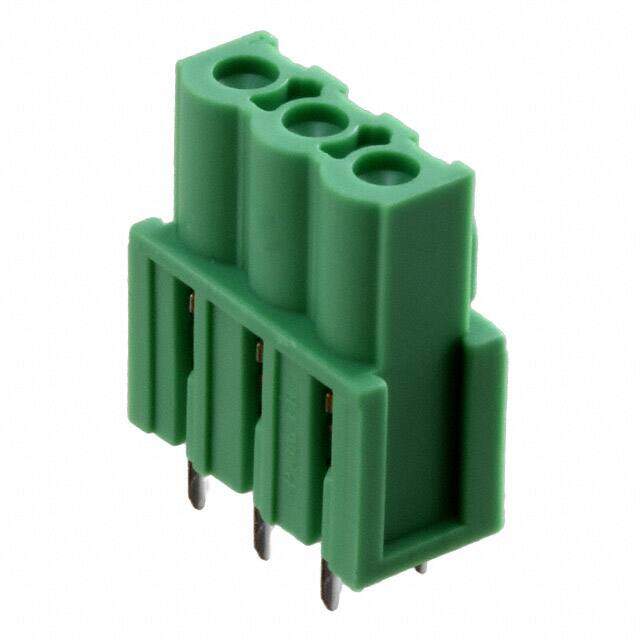

1785955 image
Favorite
1785955 image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description Conn Wire to Board HDR 3 POS 5.08mm Solder ST Thru-Hole
PDF
/
Buying Options
Total Price: USD $2.72
Unit Price: USD $2.7192
≥1 USD $2.7192
≥10 USD $2.6444
≥100 USD $2.47104
≥500 USD $2.273392
≥1000 USD $2.2308
Inventory: 726
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 7 Weeks

Physical

Contact Material Copper
Mount Through Hole
Mounting Type Through Hole
Housing Material Polyamide (PA), Nylon
Weight 165.000008g

Technical

Packaging Bulk
Published 2000
Series COMBICON ICV
Feature Retention Latches
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Connector Type Socket
Type Header, Female Sockets
Color Green
Number of Rows 1
Voltage - Rated 320V
Additional Feature PA, 94V-0
Pitch 0.200 5.08mm
Orientation Straight
Depth 10.2mm
Insulation Height 0.748 19.00mm
Current Rating 12A
Termination Style Solder
Voltage 300V
Contact Tail Length 0.142 3.60mm
Max Current Rating 12A
Number of Levels 1
Current 12A
Contact Mating Finish Tin
Number of Decks 1
Current - UL 10A
Voltage - IEC 630V
Number of Ways 3
Safety Approval UL
Header Orientation Vertical
Number of Positions Per Level 3
Fastening Method CONNECTOR

Dimensions

Height 17.24mm
Length 17.24mm
Width 22.6mm

Compliance

Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
